Trident® Industrial Control Panels
Quote Request

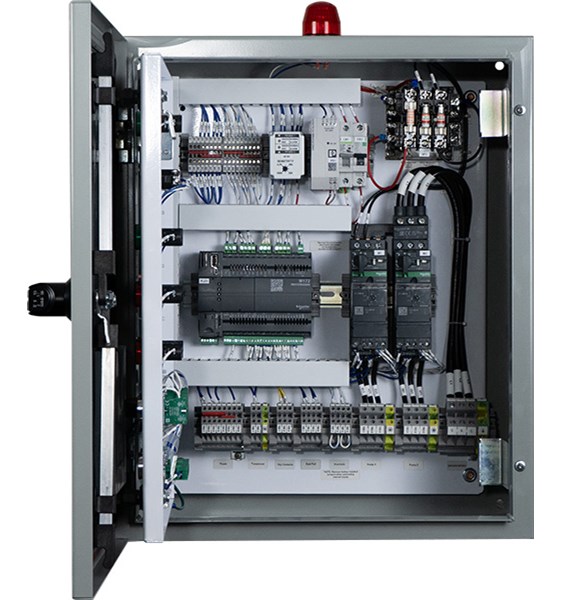

![Trident® Industrial Control Panels Inside Photo](/product-images/503_inside.jpg?maxwidth=562&maxheight=600&mode=pad&scale=both)

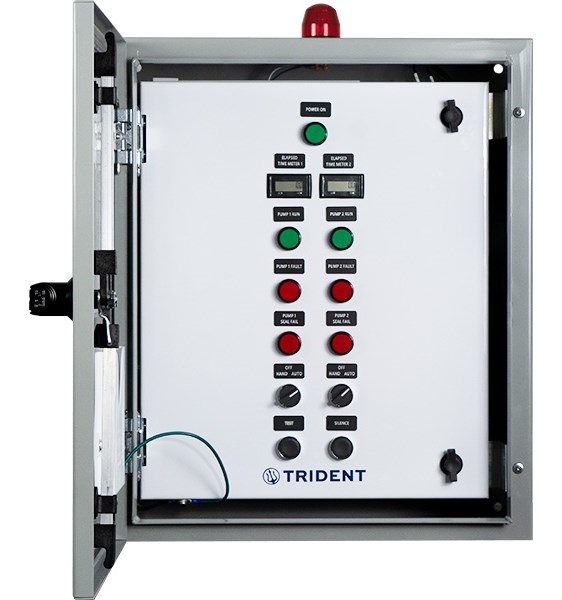

![Trident® Industrial Control Panels Outside Photo](/product-images/503.jpg?maxwidth=562&maxheight=600&mode=pad&scale=both)

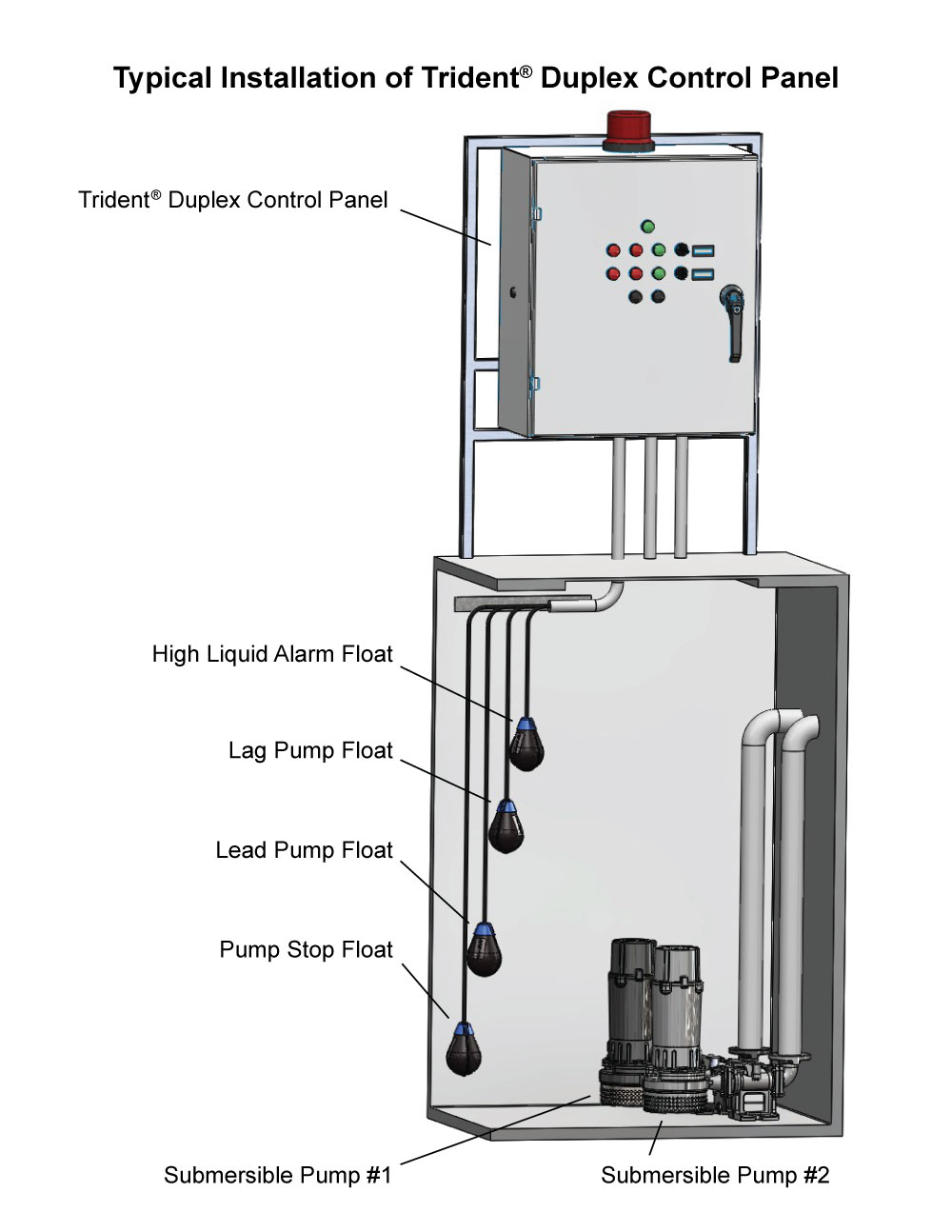

![Typical Application: Trident® Industrial Control Panels](/product-documents/trident-three-phase-duplex-installation-drawing-with-callouts.jpg)
The Trident® control system is an industrial control panel designed to simplify pump stations. We incorporate the Modicon PLC for control logic and include industry communications, such as Modbus TCP and BACnet®. The Trident® utilizes a power base that allows for easy overload changes. In addition, these control systems come standard with Seal Fail and Thermal Cutout Pump protection.
![Pacific 2.0 Logo](/product-images/pacific-2.0-logo-left-gradient.jpg)
Model | Description | Full Load Amps | |
TRS | Simplex | (Adjustable Overloads from 1.25 to 32.0 FLA) | |
TRD | Duplex | (Adjustable Overloads from 1.25 to 32.0 FLA) | |
TRT | Triplex | (Adjustable Overloads from 1.25 to 32.0 FLA) | |
(Overloads sold separately: Simplex systems require 1 overload, duplex systems require 2 overloads, and triplex systems require 3 overloads.) | |||
T11 | Single Phase 120/208/240 VAC | Adjustable overloads 1.25-5.0 | |
T12 | Single Phase 120/208/240 VAC | Adjustable overloads 3.0-12.0 | |
T13 | Single Phase 120/208/240 VAC | Adjustable overloads 8.0-32.0 | |
T31 | Three Phase 208/240/480 VAC | Adjustable overloads 1.25-5.0 | |
T32 | Three Phase 208/240/480 VAC |
Adjustable overloads 3.0-12.0 |
|
T33 | Three Phase 208/240/480 VAC | Adjustable overloads 8.0-32.0 |
Add Pump Portal® remote pump monitoring to this control panel! LEARN MORE
Features
- NEMA 3R rated painted steel enclosure with a lockable latch and dead-front inner door
- IEC rated motor starter with adjustable overload
- Pump control visible indicators: 22mm Pump #1 and #2 hand-off-auto (H.O.A.) switch, green pump run lights, red pump fault lights, and power on light
- Alarm visible indicators: Red beacon alarm light, and seal fail leak alarm test and silence buttons
- Alarm horn sounds 85 decibels at 10 feet
- Float operation:
- Simplex: Off, On, High Level
- Duplex: Off, Lead, Lag, High Level
- Triplex: Low Level, Off, Lead, Lag, Lag/Lag, High Level
- Elapsed time meters
- System Integration: Supports Modbus RTU/TCP, BACnet® MSTP/IP
- UL 508A listed
- Two-year limited warranty
- Easy access to webserver
- Flip switch for transducer and float mode
Applications
- Wastewater, Stormwater and Industrial Lift Stations
- Commercial
- Municipal
Custom Options
- 5 = Level Transducer, 5 PSI, Max Water Level 11 ft., Type: Wastewater
- 10 = Level Transducer, 10 PSI, Max Water Level 23 ft., Type: Wastewater
- 15 = Level Transducer, 15 PSI, Max Water Level 35 ft., Type: Wastewater
- 20 = Level Transducer, 20 PSI, Max Water Level 46 ft., Type: Wastewater
Note: The Trident® with transducer will come standard with backup floats (3 for simplex systems, 4 four duplex systems, and 5 for triplex systems).
- AF = Alarm Flasher
- AH = Anti Condensation Heater
- C = Additional Cord Length Per Foot Per Component*
- CO = Convenience Outlet (User to supply 120 VAC)
- GR = Generator Receptacle, Includes Transfer Switch (Total Amps 125 Max)
- IS = Intrinsically Safe - Simplex (Float Operated System)**
- ISD = Intrinsically Safe - Duplex (Float Operated System)**
- IST = Intrinsically Safe - Triplex (Float Operated System)**
- LAD / LAW = Lightning Secondary Surge Arrestor (LAD Delta / LAW Wye)
- MD = Main Disconnect - Through Door Style
- PM = Phase Monitoring - Ph Loss, Ph Unbalance, Undervoltage, Overvoltage
- PX = Pump Portal® Wireless Remote Panel Control and System Monitoring***
- S3 = No Floats
- SS4 = Upgraded Enclosure (304 Stainless Steel)
- SS6 = Upgraded Enclosure (316 Stainless Steel)
Note: Example when adding options to the TRD panel: TRD-T31-PX-SS4
*Additional cord length greater than 20’: Specify after C. Example: (TRD-T31-C50) Indicates 50’ cord lengths for all floats.
**To include an intrinsically safe transducer, please contact us.
***Additional fee will apply for monthly or annual subscription.
Trident® Webserver
Our Trident® industrial control system features a comprehensive webserver with our Pacific 2.0 software that allows for complete customization and monitoring of the system.
![](/product-images/trident-webserver-level-settings.png)

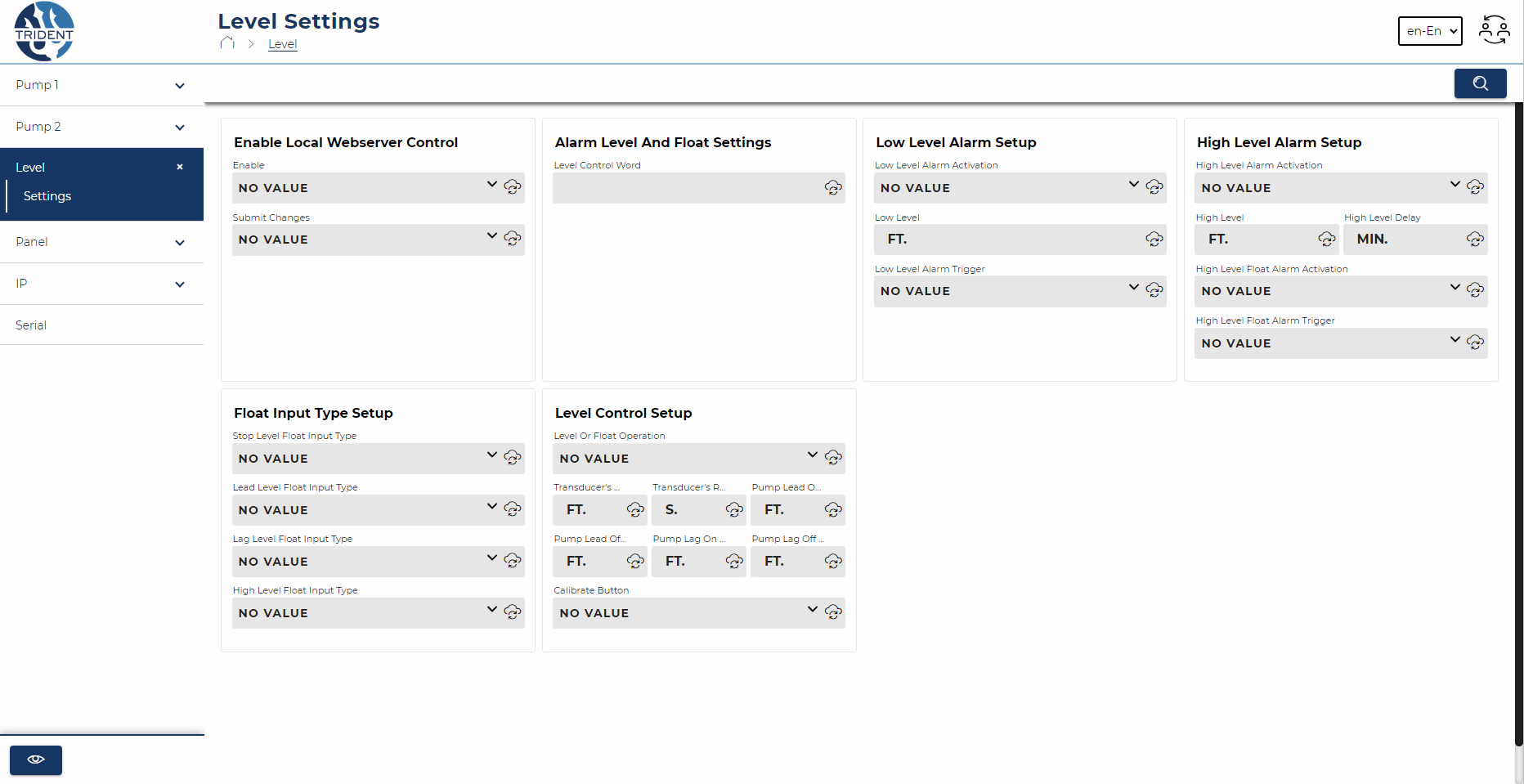

Level Settings
This page allows you to adjust the level and float settings and configure the level alarms.
![](/product-images/trident-webserver-level-status.png)

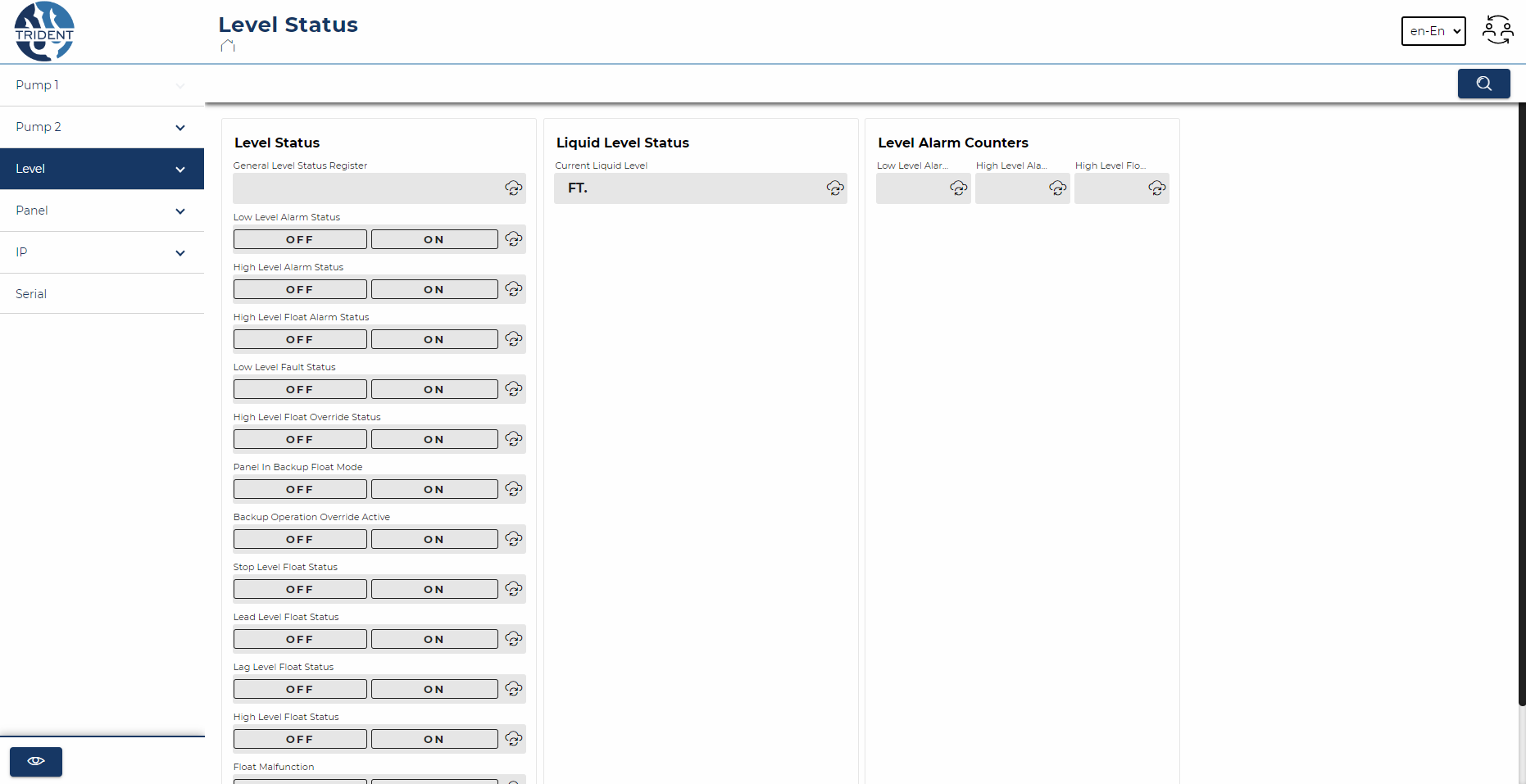

Level Status
This page displays the current state of each level register, the current liquid level from a transducer (if applicable), and the count of liquid level alarms.
![](/product-images/trident-webserver-pump-1-settings.png)

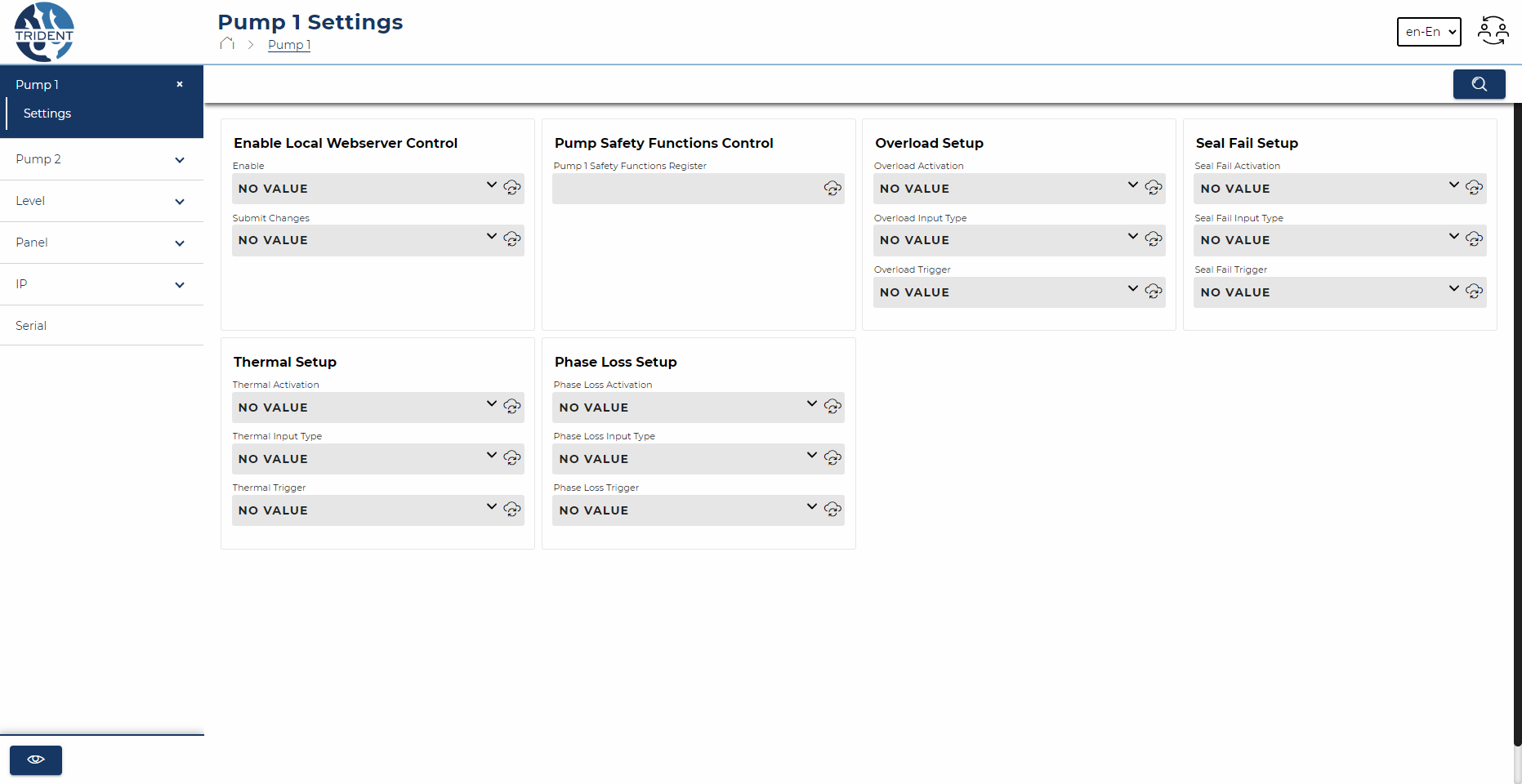

Pump Status
This page allows you to view the pump safety register and configure the pump safety features.
