Oil Smart® Three Phase Simplex Panel OSSIM-TP-30XX
Quote Request
Request is being submitted...

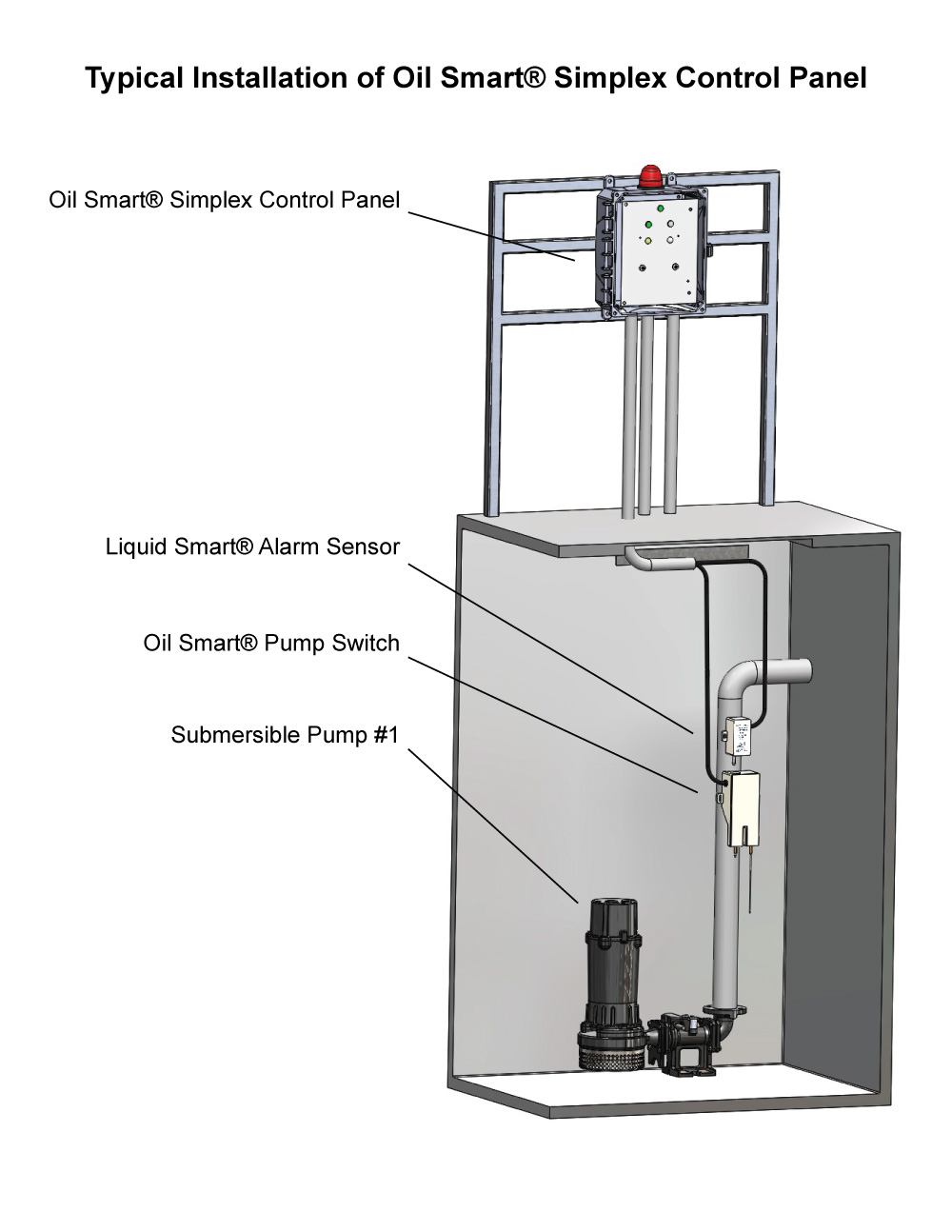

The Oil Smart® three phase simplex control panel will control a 208/240/480V three phase pump in elevator sumps, transformer containment areas, and any application where there is a need to remove water while containing oil. See Water simplex control panels come standard with a clear front NEMA 4X rated enclosure, Oil Smart® components, an IEC rated contactor, and a motor protective switch. All panels are UL listed for the United States and Canada, and come with a five-year warranty.
| Model | Voltage | Full Load Amps |
| OSSIM-TP-3001 | 208/240/480 | 1.0-1.6 |
| OSSIM-TP-3002 | 208/240/480 | 1.6-2.5 |
| OSSIM-TP-3003 | 208/240/480 | 2.5-4.0 |
| OSSIM-TP-3004 | 208/240/480 | 4.0-6.3 |
| OSSIM-TP-3005 | 208/240/480 | 6.0-10.0 |
| OSSIM-TP-3006 | 208/240/480 | 9.0-14.0 |
| OSSIM-TP-3007 | 208/240/480 | 13.0-18.0 |
| OSSIM-TP-3008 | 208/240/480 | 17.0-23.0 |
| OSSIM-TP-3009 | 208/240/480 | 20.0-25.0 |
| OSSIM-TP-3010 | 208/240/480 | 24.0-32.0 |
| IS-OSSIM-TP-30XX* | Intrinsically Safe Oil Smart® Simplex Three Phase System | |
| *Choose appropriate suffix for Intrinsically Safe model using the FLA selection chart (i.e. IS-OSSIM-TP-3001 indicates 1-1.6 FLA). | ||
Add Pump Portal® remote pump monitoring to this control panel! LEARN MORE
Features
-
Panel and controls: UL listed for the United States and Canada
-
Indoor/Outdoor NEMA 4X rated panel enclosure: Heavy duty polycarbonate with stainless steel lockable latches
-
Pump control visible indicators: Pump hand-off-auto (H.O.A.) switches, green Pump Run lights, red Pump Fault lights, and green Power On light
-
Alarm visible indicators: Red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons
-
Alarm horn sounds at 85 decibels at 10 feet
-
Remote monitoring dry contacts: Oil, Water, High Liquid, Pump Run(s), Pump #1 Fault, and Pump #2 Fault
-
Upgraded pump protection: Motor protective switches included for both pumps (branch circuit protection, adjustable overload and disconnect) and thermal cutout with indicators
Applications
-
Elevator sumps
-
Transformer containment areas
-
Underground utility vaults
-
Any application where there is a need to remove water while containing oil
Custom Options
- 24 = Pump Exerciser
- 28 = Power On Dry Contact
- 3R = Painted Steel Enclosure
- 6P = Upgraded Enclosure (NEMA 6P Rated); Removes Buzzer and Beacon
- AF = Alarm Flasher
- AH = Anti-Condensation Heater
- C = Additional Cord Length Greater Than 20’*
- CC = Cycle Counter w/ LCD Display and Reset
- ET = Elapsed Time Meter w/ LCD Display and Reset
- LAD/LAW = Lightning Secondary Surge Arrestor
- MD = Main Disconnect
- PM = Phase Monitoring
- PX = Pump Portal® Wireless Remote Panel Control and System Monitoring
- SF = Seal Failure Circuit w/ Indicator Light
- SS4 = Upgraded Enclosure (304 Stainless Steel)
- SS6 = Upgraded Enclosure (316 Stainless Steel)
*Additional cord length greater than 20’. Specify after C. Example: (OSSIM-TP-3001-C50). Indicates 50’ cord lengths for all components.
