Sensor Pro™ Series

We offer a complete line of Sensor Pro Series options for your control system! The Ultrasonic Pro Level Sensor™ and Radar Pro Level Sensor™ are the latest additions to our family of sensor products. Our sensors come standard with a two-year limited warranty.

We offer a complete line of Sensor Pro Series options for your control system! The Ultrasonic Pro Level Sensor™ and Radar Pro Level Sensor™ are the latest additions to our family of sensor products. Our sensors come standard with a two-year limited warranty.

Which Sensor is Right for My Application?

Float Pro® Control Switch Transducer Pro™ Submersible Level Transmitter Ultrasonic Pro™ Level Sensor Radar Pro™ Level Sensor
Float Pro® Control Switch Transducer Pro™ Submersible Level Transmitter Ultrasonic Pro™ Level Sensor Radar Pro™ Level Sensor
Applications
Effluent
Sewage
Wastewater
Dewatering
Backup/redundant system
Wastewater
Sludge pits
Clarifiers
Digesters
Aluminum tanks
Chemical storage tanks
Oil tanks
Sumps
Reservoirs
Non-foaming chemical Water
Petroleum-based liquids
Water processing
Pump stations
Stormwater overflow tank
Level monitoring
Wastewater
Sludge pits
Clarifiers
Digesters
Aluminum tanks
Chemical storage tanks
Sensing Range Submersible up to 30 ft (9 m) 11 - 46 ft (3 ~ 14 m) 15 ft (5 m) 33 ft (10 m)
Voltage Rating 120/240 VAC, 5A Max 13-30 VDC 24 VDC 13-30 VDC
Output N/A 4-20 mA, two-wire 4-20 mA, two-wire 4-20mA, two-wire
Temperature Up to 140°F (60°C) 0 ~ 200°F (-18 ~ 93°C) -4 ~ 140°F (-20 ~ 60°C) -104 ~ 185°F (-40 ~ 85°C)
Pressure 13 PSI (90 kPa) 5 PSI (34.5 kPa) - 20 PSI (138 kPa) -15 ~ 45 PSI (103.4 ~ 310.26 kPa) -15 ~ 45 PSI (103.4 ~ 310.26 kPa)
Rating IP68 IP68 IP67 IP67
Accuracy N/A ±0.25% F.S. ±0.5% F.S. ±0.1% F.S.
Maintenance
i
Floats require minimal maintenance. Check at regular intervals to ensure they are not stuck or in need of cleaning.
i
Transducers require occasional cleaning. It's recommended to recalibrate a transducer once per year.
i
Ultrasonic sensors occasionally require cleaning, especially when used with liquid that causes build-up. These sensors need to be recalibrated from time-to-time.
i
Radar sensors periodically need to be cleaned and recalibrated.
Versatility
i
Floats are extremely versatile and they can be used in almost any application.
i
Transducers are very versatile and they can be used in most applications; They are ideal for harsh conditions and small/narrow spaces.
i
Ultrasonic sensors are somewhat versatile in straightforward applications with no harsh conditions.
i
Radar sensors are versatile and they're ideal for harsh conditions and applications where there is debris in the liquid.
Benefits Simple, very reliable, good for general use, economical Versatile, Long range, good for harsh conditions (steam, vapor, foam, corrosive), tight spaces Good for short range, general measurement, debris present in media, low maintenance, indoor applications Reliable, very versatile, accurate, long range, low maintenance. Good for harsh conditions, situations where debris present in media
Challenges Non-continuous level measurement, susceptible to getting stuck/physical impacts Diaphragm susceptible to damage from physical impacts, debris, may require regular calibration Susceptible to environmental factors (foam, vapor, steam, wind, condensation), obstructions Difficulty in tight spaces, very short range, media with low dielectric value, obstructions
Mounting Hardware Hose clamp included 1/2 “ NPT threaded top and hardware included Mounting bracket included Mounting bracket included
Float Pro® Control Switch Transducer Pro™ Submersible Level Transmitter
Float Pro® Control Switch Transducer Pro™ Submersible Level Transmitter
Applications
Effluent
Sewage
Wastewater
Dewatering
Backup/redundant system
Applications
Wastewater
Sludge pits
Clarifiers
Digesters
Aluminum tanks
Chemical storage tanks
Oil tanks
Sumps
Reservoirs
Sensing Range
Submersible up to 30 ft (9 m)
Sensing Range
11 - 46 ft (3 ~ 14 m)
Voltage Rating
120/240 VAC, 5A Max
Voltage Rating
13-30 VDC
Output
N/A
Output
4-20 mA, two-wire
Temperature
Up to 140°F (60°C)
Temperature
0 ~ 200°F (-18 ~ 93°C)
Pressure
13 PSI (90 kPa)
Pressure
5 PSI (34.5 kPa) - 20 PSI (138 kPa)
Rating
IP68
Rating
IP68
Accuracy
N/A
Accuracy
±0.25% F.S.
Maintenance
i
Floats require minimal maintenance. Check at regular intervals to ensure they are not stuck or in need of cleaning.
Maintenance
i
Transducers require occasional cleaning. It's recommended to recalibrate a transducer once per year.
Versatility
i
Floats are extremely versatile and they can be used in almost any application.
Versatility
i
Transducers are very versatile and they can be used in most applications; They are ideal for harsh conditions and small/narrow spaces.
Benefits
Simple, very reliable, good for general use, economical
Benefits
Versatile, Long range, good for harsh conditions (steam, vapor, foam, corrosive), tight spaces
Challenges
Non-continuous level measurement, susceptible to getting stuck/physical impacts
Challenges
Diaphragm susceptible to damage from physical impacts, debris, may require regular calibration
Mounting Hardware
Hose clamp included
Mounting Hardware
1/2 “ NPT threaded top and hardware included
Ultrasonic Pro™ Level Sensor Radar Pro™ Level Sensor
Ultrasonic Pro™ Level Sensor Radar Pro™ Level Sensor
Applications
Non-foaming chemical Water
Petroleum-based liquids
Applications
Water processing
Pump stations
Stormwater overflow tank
Level monitoring
Wastewater
Sludge pits
Clarifiers
Digesters
Aluminum tanks
Chemical storage tanks
Sensing Range
15 ft (5 m)
Sensing Range
33 ft (10 m)
Voltage Rating
24 VDC
Voltage Rating
13-30 VDC
Output
4-20 mA, two-wire
Output
4-20mA, two-wire
Temperature
-4 ~ 140°F (-20 ~ 60°C)
Temperature
-104 ~ 185°F (-40 ~ 85°C)
Pressure
-15 ~ 45 PSI (103.4 ~ 310.26 kPa)
Pressure
-15 ~ 45 PSI (103.4 ~ 310.26 kPa)
Rating
IP67
Rating
IP67
Accuracy
±0.5% F.S.
Accuracy
±0.1% F.S.
Maintenance
i
Ultrasonic sensors occasionally require cleaning, especially when used with liquid that causes build-up. These sensors need to be recalibrated from time-to-time.
Maintenance
i
Radar sensors periodically need to be cleaned and recalibrated.
Versatility
i
Ultrasonic sensors are somewhat versatile in straightforward applications with no harsh conditions.
Versatility
i
Radar sensors are versatile and they're ideal for harsh conditions and applications where there is debris in the liquid.
Benefits
Good for short range, general measurement, debris present in media, low maintenance, indoor applications
Benefits
Reliable, very versatile, accurate, long range, low maintenance. Good for harsh conditions, situations where debris present in media
Challenges
Susceptible to environmental factors (foam, vapor, steam, wind, condensation), obstructions
Challenges
Difficulty in tight spaces, very short range, media with low dielectric value, obstructions
Mounting Hardware
Mounting bracket included
Mounting Hardware
Mounting bracket included

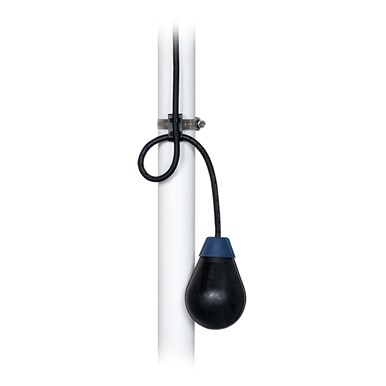

Float Pro® Control Switch
Float Pro® Control Switch
Applications
Effluent
Sewage
Wastewater
Dewatering
Backup/redundant system
Sensing Range
Submersible up to 30 ft (9 m)
Voltage Rating
120/240 VAC, 5A Max
Output
N/A
Temperature
Up to 140°F (60°C)
Pressure
13 PSI (90 kPa)
Rating
IP68
Accuracy
N/A
Maintenance
i
Floats require minimal maintenance. Check at regular intervals to ensure they are not stuck or in need of cleaning.
Versatility
i
Floats are extremely versatile and they can be used in almost any application.
Benefits
Simple, very reliable, good for general use, economical
Challenges
Non-continuous level measurement, susceptible to getting stuck/physical impacts
Mounting Hardware
Hose clamp included

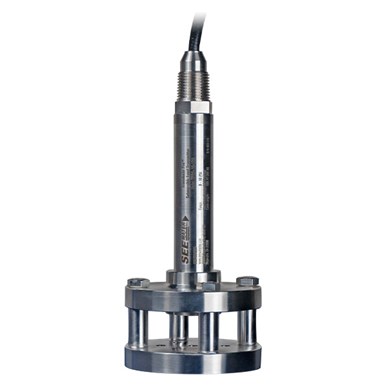

Transducer Pro™ Submersible Level Transmitter
Transducer Pro™ Submersible Level Transmitter
Applications
Wastewater
Sludge pits
Clarifiers
Digesters
Aluminum tanks
Chemical storage tanks
Oil tanks
Sumps
Reservoirs
Sensing Range
11 - 46 ft (3 ~ 14 m)
Voltage Rating
13-30 VDC
Output
4-20 mA, two-wire
Temperature
0 ~ 200°F (-18 ~ 93°C)
Pressure
5 PSI (34.5 kPa) - 20 PSI (138 kPa)
Rating
IP68
Accuracy
±0.25% F.S.
Maintenance
i
Transducers require occasional cleaning. It's recommended to recalibrate a transducer once per year.
Versatility
i
Transducers are very versatile and they can be used in most applications; They are ideal for harsh conditions and small/narrow spaces.
Benefits
Versatile, Long range, good for harsh conditions (steam, vapor, foam, corrosive), tight spaces
Challenges
Diaphragm susceptible to damage from physical impacts, debris, may require regular calibration
Mounting Hardware
1/2 “ NPT threaded top and hardware included

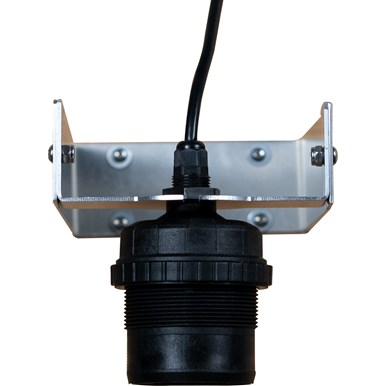

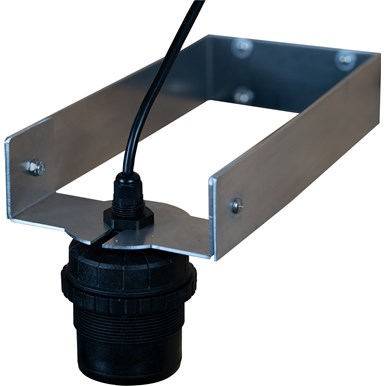

Ultrasonic Pro™ Level Sensor
Ultrasonic Pro™ Level Sensor
Applications
Non-foaming chemical Water
Petroleum-based liquids
Sensing Range
15 ft (5 m)
Voltage Rating
24 VDC
Output
4-20 mA, two-wire
Temperature
-4 ~ 140°F (-20 ~ 60°C)
Pressure
-15 ~ 45 PSI (103.4 ~ 310.26 kPa)
Rating
IP67
Accuracy
±0.5% F.S.
Maintenance
i
Ultrasonic sensors occasionally require cleaning, especially when used with liquid that causes build-up. These sensors need to be recalibrated from time-to-time.
Versatility
i
Ultrasonic sensors are somewhat versatile in straightforward applications with no harsh conditions.
Benefits
Good for short range, general measurement, debris present in media, low maintenance, indoor applications
Challenges
Susceptible to environmental factors (foam, vapor, steam, wind, condensation), obstructions
Mounting Hardware
Mounting bracket included

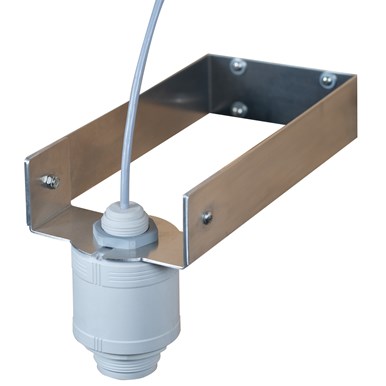

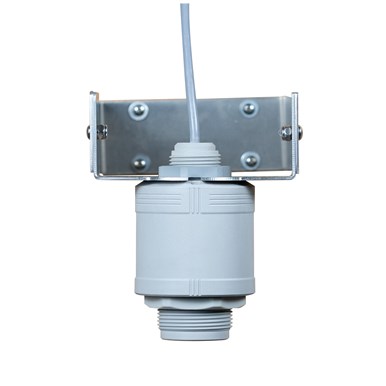

Radar Pro™ Level Sensor
Radar Pro™ Level Sensor
Applications
Water processing
Pump stations
Stormwater overflow tank
Level monitoring
Wastewater
Sludge pits
Clarifiers
Digesters
Aluminum tanks
Chemical storage tanks
Sensing Range
33 ft (10 m)
Voltage Rating
13-30 VDC
Output
4-20mA, two-wire
Temperature
-104 ~ 185°F (-40 ~ 85°C)
Pressure
-15 ~ 45 PSI (103.4 ~ 310.26 kPa)
Rating
IP67
Accuracy
±0.1% F.S.
Maintenance
i
Radar sensors periodically need to be cleaned and recalibrated.
Versatility
i
Radar sensors are versatile and they're ideal for harsh conditions and applications where there is debris in the liquid.
Benefits
Reliable, very versatile, accurate, long range, low maintenance. Good for harsh conditions, situations where debris present in media
Challenges
Difficulty in tight spaces, very short range, media with low dielectric value, obstructions
Mounting Hardware
Mounting bracket included
