Single Phase Simplex Demand WS1P-TP

Give us a call at 1.888.733.9283 to speak with one of our expert Sales Engineers or submit an online quote request by filling out the form below.

Name

Company

Phone

Message

By clicking "Submit Quote Request", you agree to See Water's Terms of Use and Privacy Policy. You consent to receive phone calls and SMS messages from See Water, Inc. to provide updates on your quote, order, and/or for marketing purposes. Message frequency depends on your activity. You may opt-out by texting "STOP". Message and data rates may apply.

Request is being submitted... loading image

Your quote request has been submitted to our Sales Department. One of our Sales Engineers will contact you by phone or email within 24 hours or less.

An unexpected error has occurred.

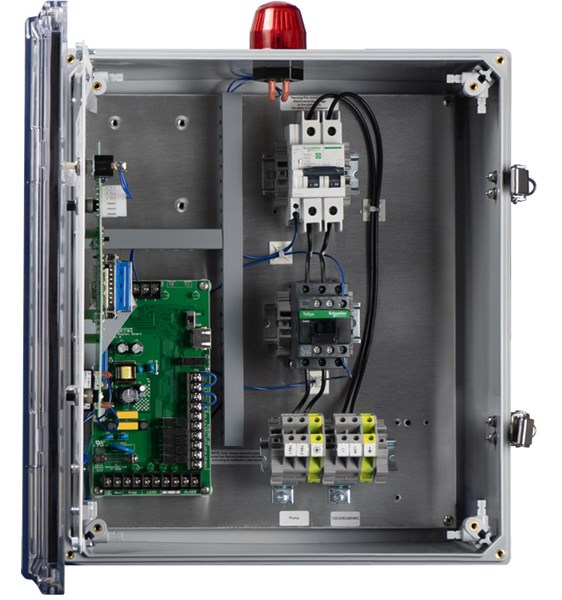

Single Phase Simplex Demand WS1P-TP Inside Photo

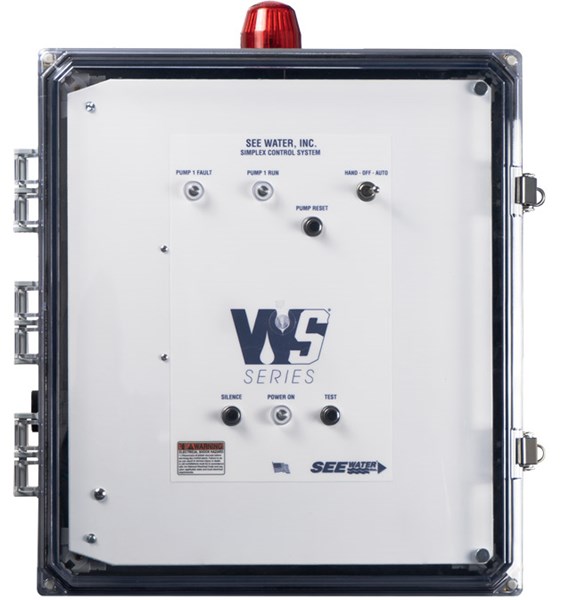

Single Phase Simplex Demand WS1P-TP Outside Photo

Literature

WS1P-TP-(1001-1004)

Schematic

WS1P-TP-1005

Schematic

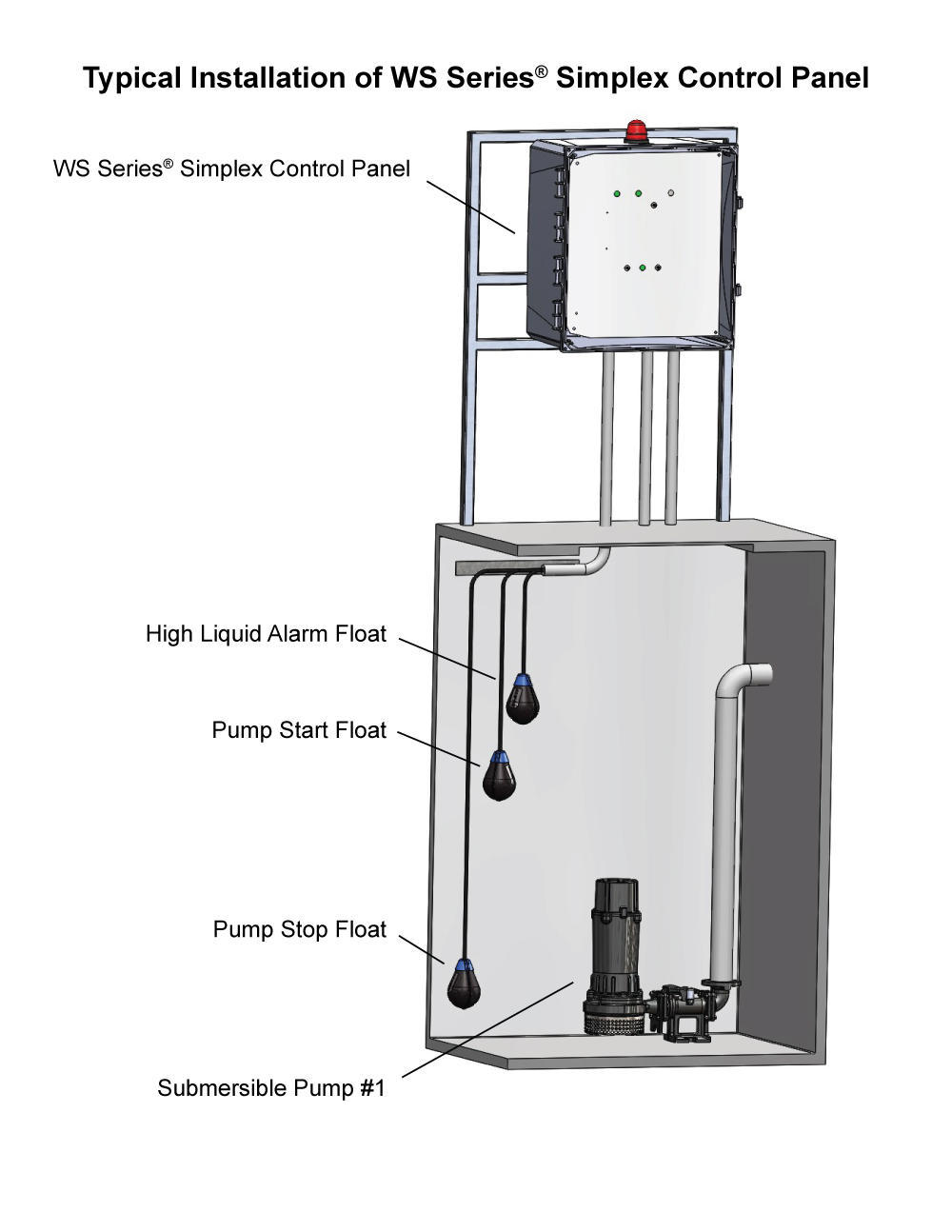

Typical Application: Single Phase Simplex Demand WS1P-TP

The WS Series® single phase simplex control panel will control a 120/208/240V single phase pump in sewage pump chambers, sump pump basins, and lift stations. See Water simplex control panels come standard with a clear front NEMA 4X rated enclosure, an IEC rated contactor, and a motor protective switch. All panels are UL listed for the United States and Canada, and come standard with a five-year warranty.

REQUEST A QUOTE

Model	Voltage	Full Load Amps
WS1P-TP-1001	120/208/240	0-7.0
WS1P-TP-1002	120/208/240	7.0-15.0
WS1P-TP-1003	120/208/240	15.0-22.0
WS1P-TP-1004	120/208/240	22.0-28.0
WS1P-TP-1005	120/208/240	28.0-36.0
3-20 ft. Floats Included (Add “S3” for no floats) Example: WS1P-TP-1001-S3

Note: Thermal overload protection is generally provided in single phase pumps. To request a specific overload on the single phase models, contact the factory. Each panel includes a motor protective switch that will provide accurate pump circuit breaker protection.

Add Pump Portal® remote pump monitoring to this control panel! LEARN MORE

Features

UL listed for the United States and Canada (panel and controls)
Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
Pump control visible indicators: Pump hand-off-auto (H.O.A.) switch, green Pump Run light, red Pump Fault light with reset button, and Power On light
Alarm visible indicators: Red beacon alarm light, alarm test and silence buttons
Alarm horn sounds at 85 decibels at 10 feet
Remote monitoring by dry contacts: High Liquid, Pump Fault, Pump Run
Upgraded pump protection: Motor protective switch (branch circuit protection, adjustable overload and disconnect) and a thermal cutout with indicator

Applications

Sewage pump chambers
Grinder pumps
Sump pump basins
Lift stations

Custom Options

24 = Pump Exerciser
28 = Power On Dry Contact (Normally Open)
3R = Painted Steel Enclosure
AF = Alarm Flasher
AH = Anti Condensation Heater
C = Additional Cord Length Per Foot Per Component*
CC = Cycle Counter w/ LCD Display and Reset
CO = Convenience Outlet (User to supply 120 VAC)
ET = Elapsed Time Meter w/ LCD Display and Reset
GR = Generator Receptacle, Includes Transfer Switch
IS = Intrinsically Safe
LAD/LAW = Lightning Secondary Surge Arrestor (LAD Delta / LAW Wye)
LL = Low Level Alarm
MD = Main Disconnect; Up to 100 FLA
PM = Phase Monitoring
PX = Pump Portal® Wireless Remote System Monitoring
SF = Seal Failure Circuit w/ Indicator Light
S3 = No Floats Option
SS4 = Upgraded Enclosure (304 Stainless Steel)
SS6 = Upgraded Enclosure (316 Stainless Steel)

*Additional cord length greater than 20’: Specify after C. Example: (WS1P-TP-1003-C50) Indicates 50’ cord lengths for all floats.
