Three Phase Simplex Demand WS3P-TP Pump Control Panel

Quote Request

Three Phase Simplex Demand WS3P-TP

Give us a call at 1.888.733.9283 to speak with one of our expert Sales Engineers or submit an online quote request by filling out the form below.


By clicking "Submit Quote Request", you agree to See Water's Terms of Use and Privacy Policy. You consent to receive phone calls and SMS messages from See Water, Inc. to provide updates on your quote, order, and/or for marketing purposes. Message frequency depends on your activity. You may opt-out by texting "STOP". Message and data rates may apply.

Request is being submitted... loading image

Your quote request has been submitted to our Sales Department. One of our Sales Engineers will contact you by phone or email within 24 hours or less.

An unexpected error has occurred.

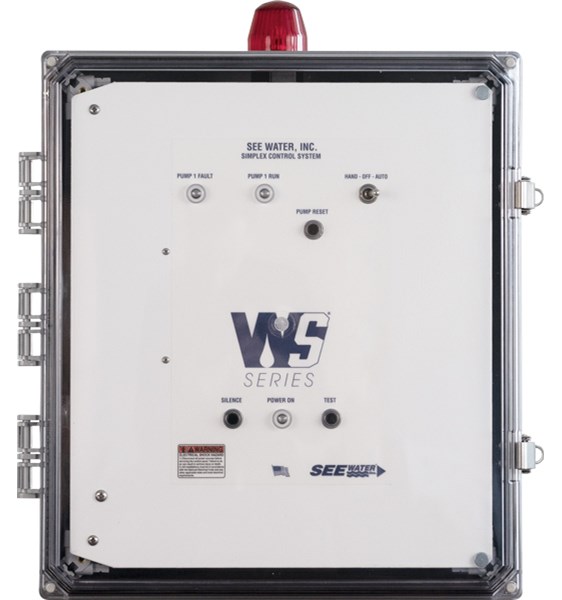

Three Phase Simplex Demand WS3P-TP Inside Photo Three Phase Simplex Demand WS3P-TP Outside Photo
Literature
WS3P-TP-(3001-3009)
WS3P-TP-3010
WS3P-TP-(3011-3013)

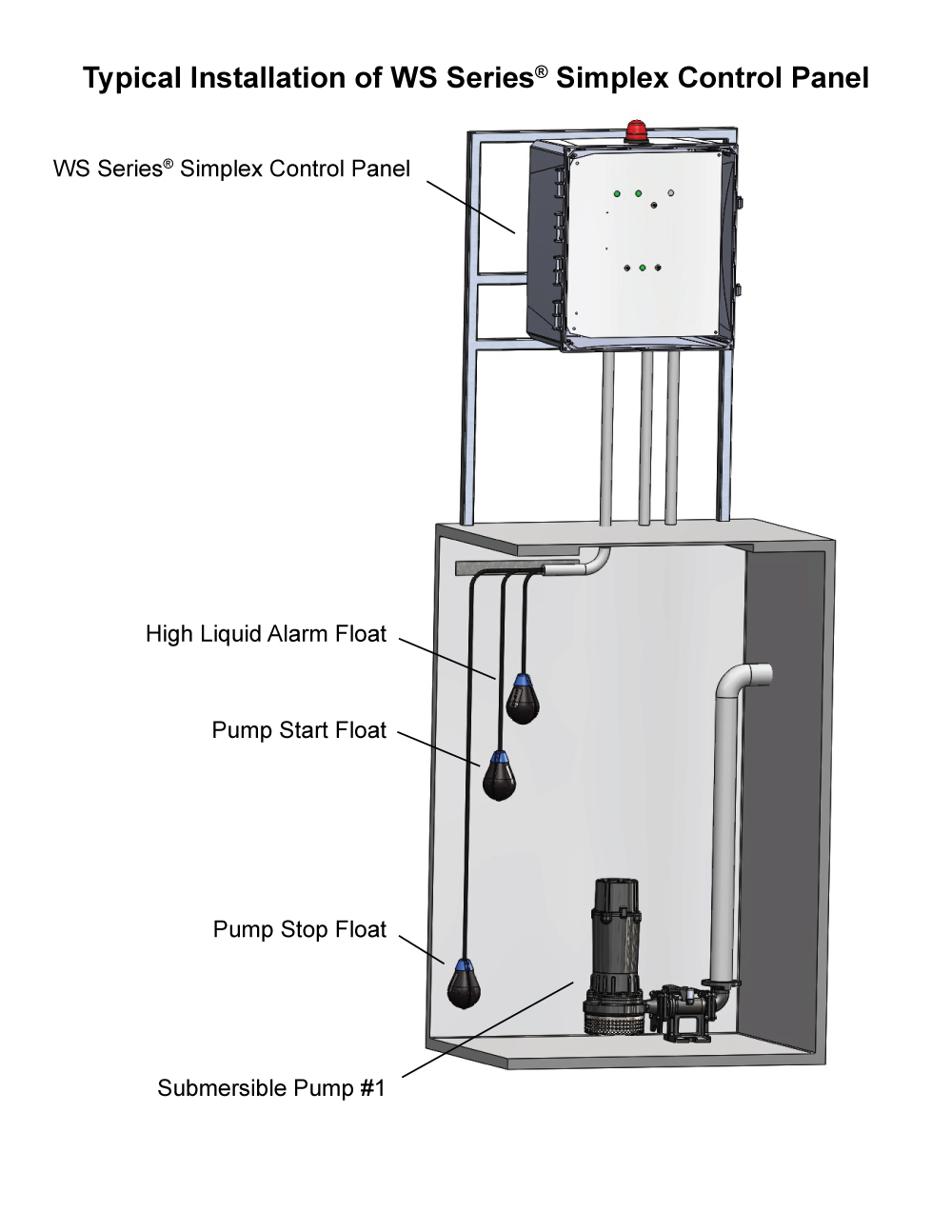

Typical Application: Three Phase Simplex Demand WS3P-TP

The WS Series® three phase simplex control panel will control a 208/240/480V three phase pump in sewage pump chambers, sump pump basins, and lift stations. See Water simplex control panels come standard with a clear front NEMA 4X rated enclosure, an IEC rated contactor, and a motor protective switch. All panels are UL listed for the United States and Canada, and come standard with a five-year warranty.

REQUEST A QUOTE

Model Voltage Full Load Amps
WS3P-TP-3001 208/240/480 1.0-1.6
WS3P-TP-3002 208/240/480 1.6-2.5
WS3P-TP-3003 208/240/480 2.5-4.0
WS3P-TP-3004 208/240/480 4.0-6.3
WS3P-TP-3005 208/240/480 6.0-10.0
WS3P-TP-3006 208/240/480 9.0-14.0
WS3P-TP-3007 208/240/480 13.0-18.0
WS3P-TP-3008 208/240/480 17.0-23.0
WS3P-TP-3009 208/240/480 20.0-25.0
WS3P-TP-3010 208/240/480 24.0-32.0
WS3P-TP-3011 208/240/480 30.0-40.0
WS3P-TP-3012 208/240/480 37.0-50.0
WS3P-TP-3013 208/240/480 48.0-65.0
WS3P-TP-3014 208/240/480 65.0-115.0

Add Pump Portal® remote pump monitoring to this control panel!     LEARN MORE


Features

  • UL listed for the United States and Canada (panel and controls)
  • Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
  • Pump control visible indicators: Pump hand-off-auto (H.O.A.) switch, green Pump Run light, red Pump Fault light with reset button, and Power On light
  • Alarm visible indicators: Red beacon alarm light, alarm test and silence buttons
  • Alarm horn sounds at 85 decibels at 10 feet
  • Remote monitoring by dry contacts: High Liquid, Pump Fault, Pump Run
  • Upgraded pump protection: Motor protective switch (branch circuit protection, adjustable overload and disconnect) and a thermal cutout with indicator

Applications

  • Sewage pump chambers
  • Grinder pumps
  • Sump pump basins
  • Lift stations

Custom Options

  • 24 = Pump Exerciser
  • 28 = Power On Dry Contact (Normally Open)
  • 3R = Painted Steel Enclosure
  • AF = Alarm Flasher
  • AH = Anti Condensation Heater
  • C = Additional Cord Length Per Foot Per Component*
  • CC = Cycle Counter w/ LCD Display and Reset
  • CO = Convenience Outlet (User to supply 120 VAC)
  • ET = Elapsed Time Meter w/ LCD Display and Reset
  • GR = Generator Receptacle, Includes Transfer Switch
  • IS = Intrinsically Safe
  • LAD/LAW = Lightning Secondary Surge Arrestor (LAD Delta / LAW Wye)
  • LL = Low Level Alarm
  • MD = Main Disconnect; Up to 100 FLA
  • MD2 = Main Disconnect; 100 to 230 FLA
  • PM = Phase Monitoring
  • PX = Pump Portal® Wireless Remote Communication
  • SF = Seal Failure Circuit w/ Indicator Light
  • S3 = No Floats Option
  • SS4 = Upgraded Enclosure (304 Stainless Steel)
  • SS6 = Upgraded Enclosure (316 Stainless Steel)

*Additional cord length greater than 20’: Specify after C. Example: (WS3P-TP-3001-C50) Indicates 50’ cord lengths for all floats.
