Submersible Pump
Quote Request

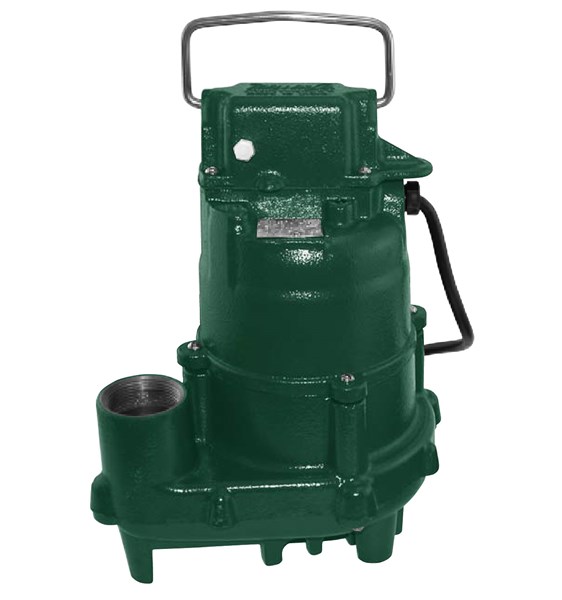

![Submersible Pump](/product-images/508.jpg?maxwidth=562&maxheight=600&mode=pad&scale=both)
Literature
Model | Volts | Max. Load | FLA | Type |
151 | 120 60Hz. | 1/3 HP | 6 | Cast Iron |
152 | 120 60Hz. | 4/10 HP | 8.5 | Cast Iron |
153 | 120 60Hz. | 1/2 HP | 10.5 | Cast Iron |
Pump Features
- Made of durable cast iron
- Automatic reset thermal overload protected
- Non-clogging vortex impeller
- Model 151 - 1/3 HP Passes 1/2” spherical solids
- Model 152 - .4 HP Passes 3/4” spherical solids
- Model 153 - 1/2 HP Passes 3/4” spherical solids
- CSA Certified C/US Tested to UL Standard CSA22.2 No. 108
![](/product-images/Pump Performance Curve 2.png)

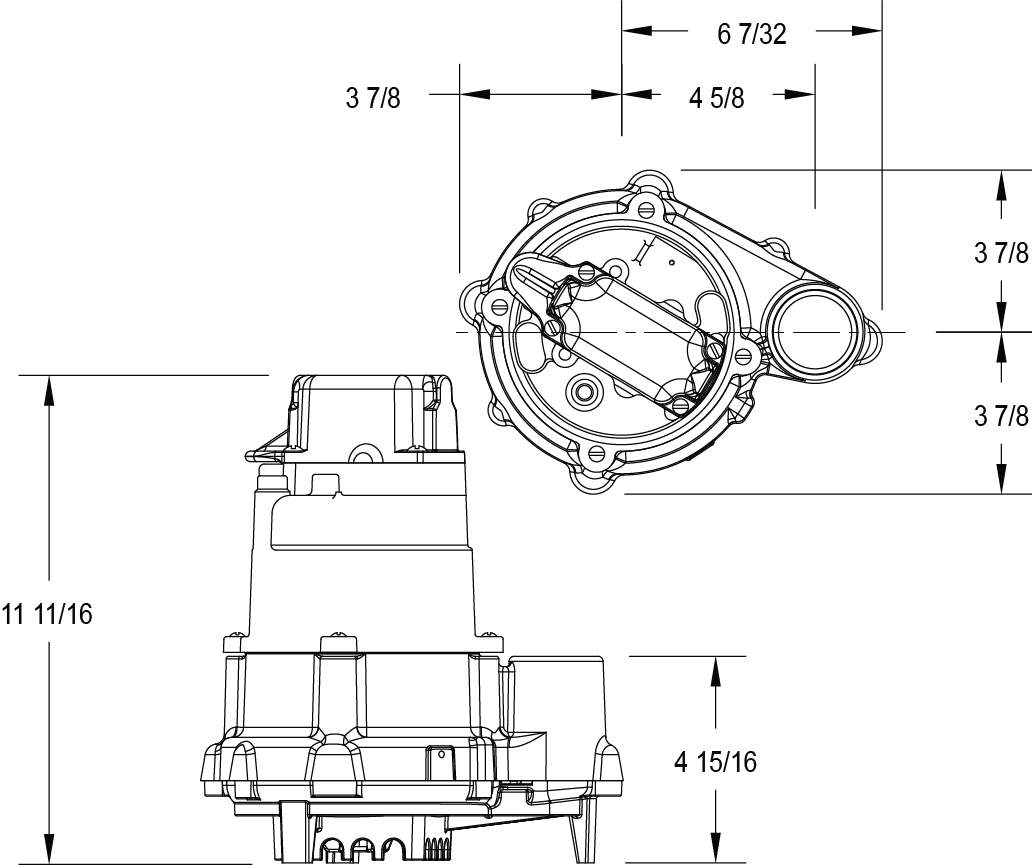

Model 151
![](/product-images/151 dimensions.png)

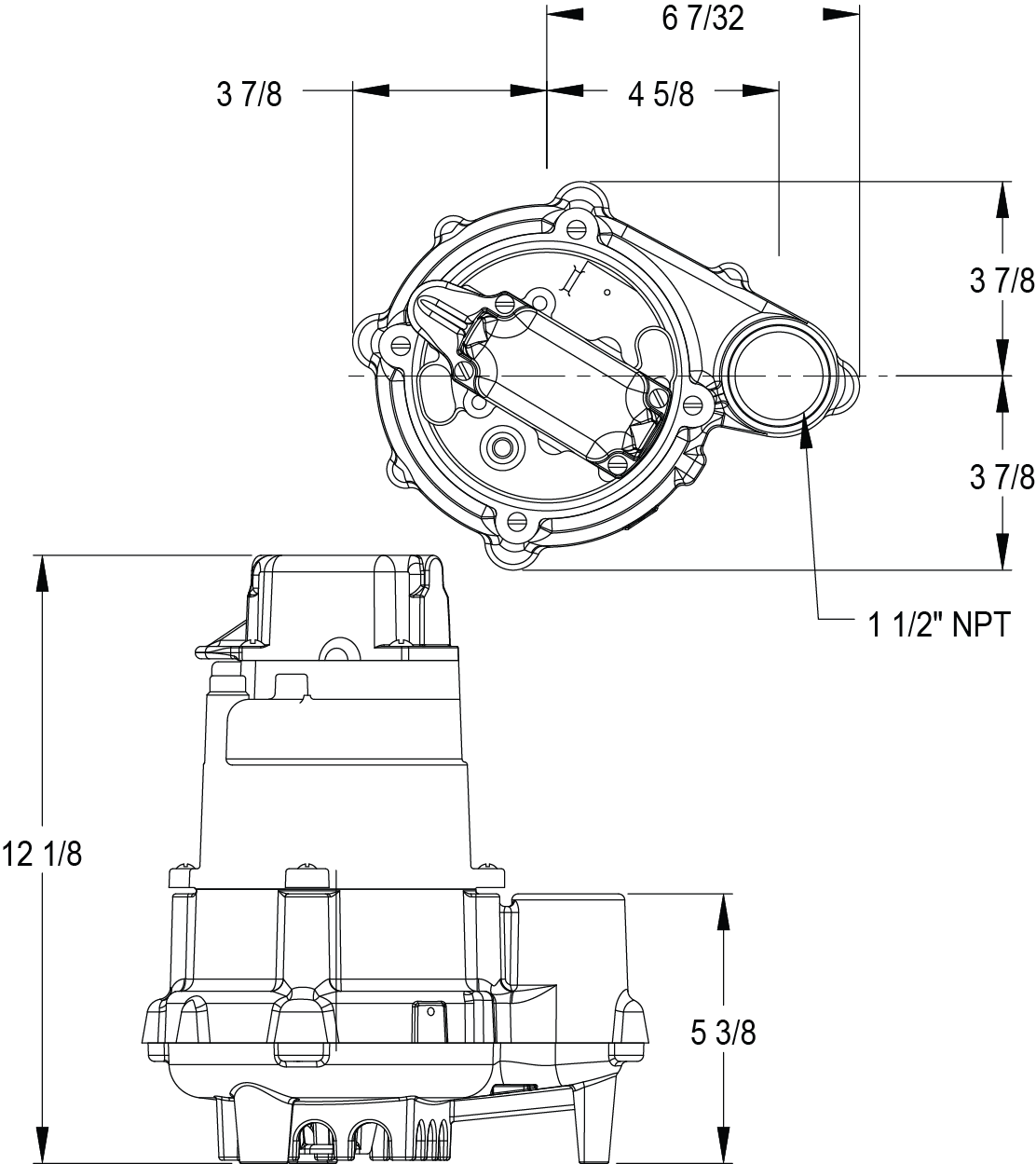

Model 152 & 153
![](/product-images/153 Pump Dimensions.png)
