Oil Smart® Single Phase Simplex Total Pump Protection Panel OSSIM-TP-1
Quote Request

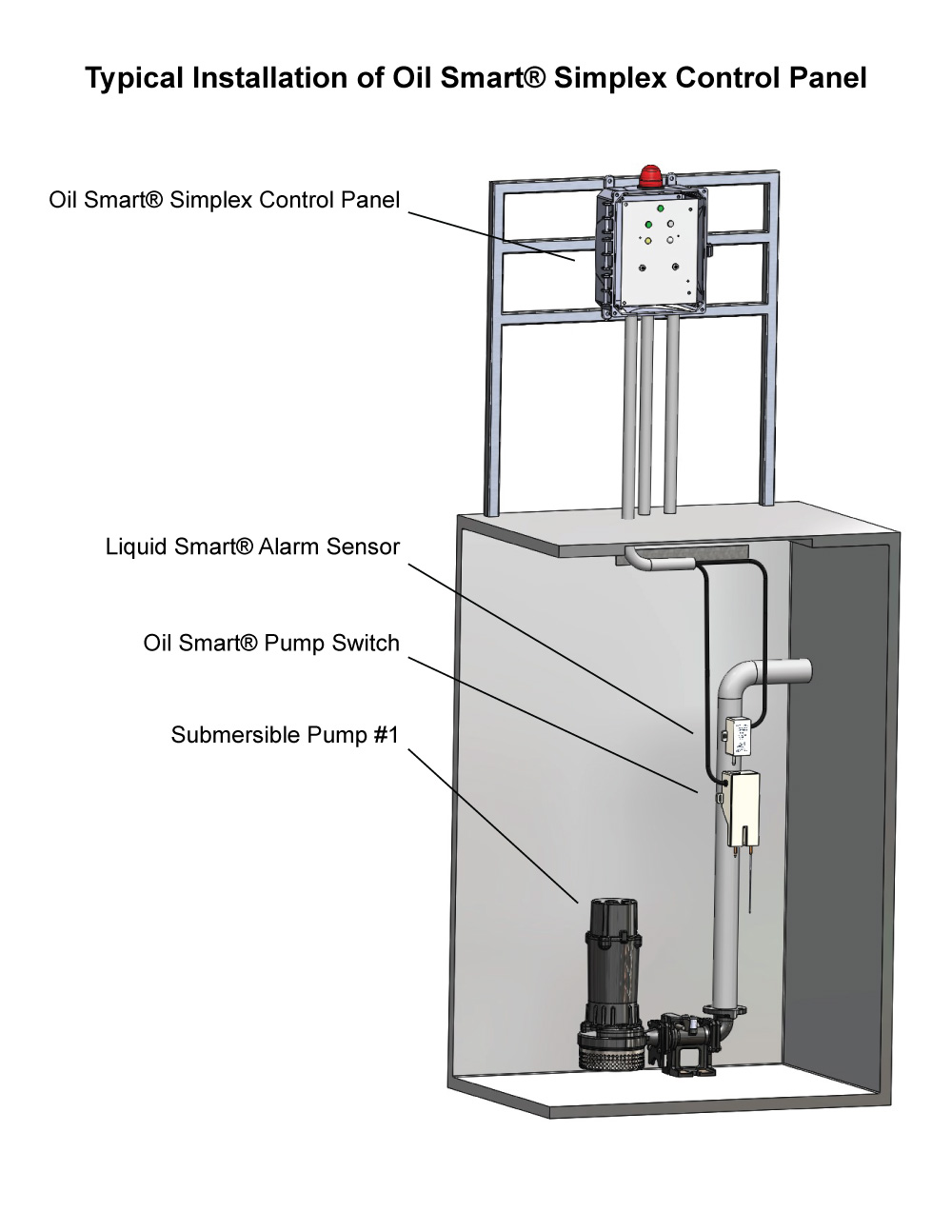

The Oil Smart® single phase simplex control panel will control a 120/208/240V single phase pump in elevator sumps, transformer containment areas, and any application where there is a need to remove water while containing oil. See Water simplex control panels come standard with a clear front NEMA 4X rated enclosure, Oil Smart® components, an IEC rated contactor, and a motor protective switch. All panels are UL listed for the United States and Canada, and come with a five-year warranty.
Model | Voltage | Full Load Amps |
OSSIM-TP-1001 | 120/208/240 | 0-7.0 |
OSSIM-TP-1002 | 120/208/240 | 7.0-15.0 |
OSSIM-TP-1003 | 120/208/240 | 15.0-22.0 |
OSSIM-TP-1004 | 120/208/240 | 22.0-28.0 |
OSSIM-TP-1005 | 120/208/240 | 28.0-36.0 |
IS-OSSIM-TP-100X* | Intrinsically Safe Oil Smart® Simplex Single Phase System | |
*Choose appropriate suffix for Intrinsically Safe model using the FLA selection chart (i.e. IS-OSSIM-TP-1002 indicates 7-15 FLA). |
Note: Thermal overload protection is generally provided in single phase pumps. To request a specific overload on the Oil Smart® single phase models, contact the factory. Each panel includes a motor protector switch that will provide accurate pump circuit breaker protection.
Add Pump Portal® remote pump monitoring to this control panel! LEARN MORE
Features
- Panel and controls: UL listed for the United States and Canada
- Indoor/Outdoor NEMA 4X rated panel enclosure: Heavy duty polycarbonate with stainless steel lockable latches
- Pump control visible indicators: pump hand-off-auto (H.O.A.) switch, green Pump Run light, red Pump Fault light, and green Power On light
- Alarm visible indicators: Red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons
- Alarm horn sounds at 85 decibels at 10 feet
- Remote monitoring dry contacts: Oil, Water, High Liquid, Pump Run, and Pump Fault
- Upgraded pump protection: Motor protective switch (branch circuit protection, adjustable overload and disconnect) and a thermal cutout with indicator
Applications
- Elevator sumps
- Transformer containment areas
- Underground utility vaults
- Any application where there is a need to remove water while containing oil
Custom Options
- 24 = Pump Exerciser
- 28 = Power On Dry Contact
- 3R = Painted Steel Enclosure
- 6P = Upgraded Enclosure (NEMA 6P Rated); Removes Buzzer and Beacon
- AF = Alarm Flasher
- AH = Anti-Condensation Heater
- C = Additional Cord Length Greater Than 20’*
- CC = Cycle Counter w/ LCD Display and Reset
- ET = Elapsed Time Meter w/ LCD Display and Reset
- LAD/LAW = Lightning Secondary Surge Arrestor
- MD = Main Disconnect
- PM = Phase Monitoring
- PX = Pump Portal® Wireless Remote System Monitoring
- SF = Seal Failure Circuit w/ Indicator Light
- SS4 = Upgraded Enclosure (304 Stainless Steel)
- SS6 = Upgraded Enclosure (316 Stainless Steel)
*Additional cord length greater than 20’. Specify after C. Example: (OSSIM-TP-1001-C50). Indicates 50’ cord lengths for all components.
