Parabola® VFD Control Panel – Level Applications

Parabola® VFD Control Panels - Level Applications

The Parabola® VFD control panels are advanced pre-engineered simplex, duplex and triplex control panels with a user-friendly HMI control interface. The control panels are designed for level applications, including: lift stations, sewage pumps, grinder pumps, sump pump basins, wastewater applications and other dewatering applications.

REQUEST A QUOTE

Features

  • Single or three phase voltage supply, designed to control 208/240/480VAC pump(s)
  • Pump protection: Motor protective switch included for each (branch circuit protection, adjustable overload and disconnect)
  • Alarm horn sounds at 85 decibels at 10 feet
  • Alarm visible features: Red beacon alarm light
  • Remote monitoring dry contacts: High/low level alarms, summary alarm/fault (normally open)
  • NEMA 3R rated enclosure: Painted steel with lockable front door and through door main disconnect
  • Variable frequency drive operation with configurable parameter settings accessible via HMI
  • Panel and controls are UL listed for the United States and Canada
  • Modbus RTU/TCP communication options

Add Pump Portal® remote pump monitoring to this control panel!     LEARN MORE


Program/PLC/HMI

  • Selectable alternation pattern: Cycle or timed
  • Multiple access levels for added security
  • Simplex adjustable set points: Low Level, Stop, Start, High Level (adjustable lead pump start and stop set points)
  • Duplex adjustable set points: Low Level, Stop, Lead, Lag, High level
  • Optional feature: Pump down constant level management PID loop
  • Pump run data logging: Records each pump event - start time, stop time and run duration
  • Automatic system restart
  • HMI touchscreen display features:
    • Hand-Off-Auto (H.O.A.) switch for each pump
    • Green Pump Run indicators
    • Red Pump Fault indicators
    • Pump and level status screens
  • Alarm/Fault history: Data logging gives access to 250 fault conditions with date and time (optional access to auto-save alarm history to USB drive)
  • Backup float override operation: User-configurable feature that automatically switches to float-based operation in the event of a transducer error
  • No flow protection: User-configurable feature that inhibits pumping during no flow conditions

Applications

  • Lift stations
  • Sewage pumps
  • Grinder pumps
  • Sump pump basins
  • Wastewater applications
  • Other dewatering applications

Custom Options

  • 5 = Level Transducer, 5 PSI, Maximum Water Level 11 ft., Type: Wastewater
  • 10 = Level Transducer, 10 PSI, Maximum Water Level 23 ft., Type: Wastewater
  • 15 = Level Transducer, 15 PSI, Maximum Water Level 35 ft., Type: Wastewater
  • 20 = Level Transducer, 20 PSI, Maximum Water Level 46 ft., Type: Wastewater
  • 5S = Level Transducer, 5 PSI, Maximum Water Level 11ft., Type: Water
  • 10S = Level Transducer, 10 PSI, Maximum Water Level 23 ft., Type: Water
  • 15S = Level Transducer, 15 PSI, Maximum Water Level 35 ft., Type: Water
  • 20S = Level Transducer, 20 PSI, Maximum Water Level 46 ft., Type: Water
  • 28 = Power On Dry Contact (Normally Open)
  • 38 = Simplex Float Operation
  • 39 = Duplex Float Operation
  • 40 = Triplex Float Operation
  • AH = Anti Condensation Heater
  • CO = Convenience Outlet (User to Supply 120VAC)
  • GR = Generator Receptacle, Includes Transfer Switch
  • IS = Intrinsically Safe - Simplex
  • ISD = Intrinsically Safe - Duplex
  • IST = Intrinsically Safe - Triplex
  • LAD/LAW = Lightning Secondary Surge Arrestor (LAD Delta / LAW Wye)
  • PM = Phase Monitoring
  • PX = Pump Portal® Wireless Remote Panel Control and System Monitoring
  • SF = Seal Failure Circuit and Indicator Light - Simplex
  • SFD = Seal Failure Circuit and Indicator Lights - Duplex
  • SFT = Seal Failure Circuit and Indicator Lights - Triplex
  • TC = Pump Thermal Cutout Circuit and Indicator - Simplex
  • TCD = Pump Thermal Cutout Circuit and Indicator - Duplex
  • TCT = Pump Thermal Cutout Circuit and Indicator - Triplex

Overview

The HMI’s main menu displays live pump data and H.O.A. switch(es). This menu is the user’s command center.

Setup

Users can easily setup the Parabola’s Pump On, Pump Off, High and Low levels - all with the touch of a button!

Pump Status

Status of all processes. Users can view Pump Fault, Run Time and other necessary information associated with the pump operation.

Alarm/Fault History

Data logging gives you access to up to 250 conditions with date and time.

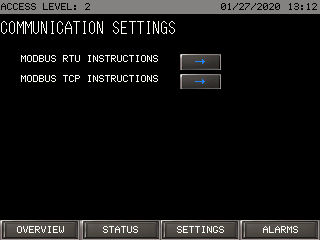

Advanced Communication

Modbus RTU, Modbus TCP and additional communication protocols are supported.
