Oil Smart® Upgraded Simplex Kit
Quote Request

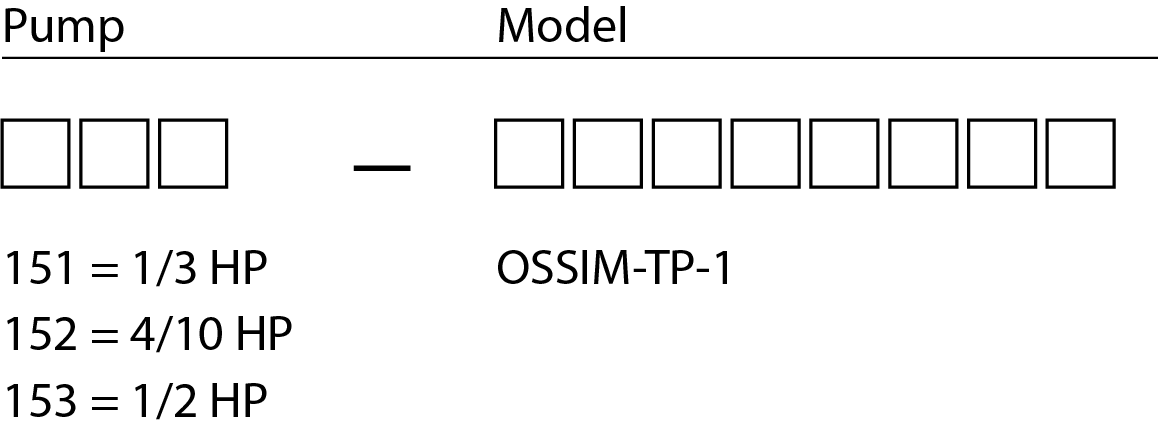

Model | Voltage | Full Load Amps |
OSSIM-TP-1001 | 120/208/240 | 0-7.0 |
OSSIM-TP-1002* | 120/208/240 | 7.0-15.0 |
OSSIM-TP-1003 | 120/208/240 | 15.0-22.0 |
OSSIM-TP-1004 | 120/208/240 | 22.0-28.0 |
*If Model # OSSIM-TP-1 is ordered, the OSSIM-TP-1002 will be shipped. |
Note: Thermal overload protection is generally provided in single phase pumps. To request a specific overload on the Oil Smart® Single Phase Models, contact the factory. Each panel includes a motor protector switch that will provide accurate pump circuit breaker protection.
Features
- Panel and controls: UL listed for the United States and Canada
- Indoor/Outdoor NEMA 4X panel enclosure: heavy duty polycarbonate with stainless steel lockable latches
- Pump control visible indicators: pump hand-off-auto (H.O.A.) switch, green pump run light, red pump fault light, and green power on light
- Alarm visible indicators: red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons
- Alarm horn sounds at 85 decibels at 10 feet
- Remote monitoring dry contacts: oil, water, high liquid, pump run, and pump fault
- Upgraded pump protection: motor protective switch (branch circuit protection, adjustable overload and disconnect), and a thermal cutout with indicator.
Applications
- Elevator sumps
- Transformer containment areas
- Underground utility vaults
- Any application where there is a need to remove water while containing oil
