Oil Smart® Simplex Kit
Quote Request
Request is being submitted...

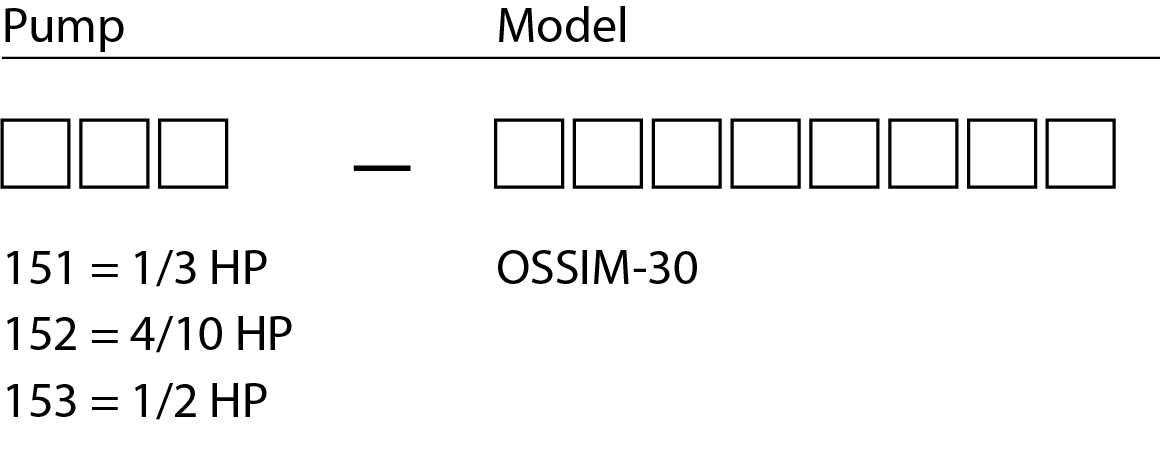

| Model | Circuit Breaker | VAC | Phase | Operates Pumps Up To |
| OSSIM-30 | 120/208/240 | Single |
1HP @ 120V 2HP @ 208/240V |
|
| OSSIM-30-CB | Yes | 120/208/240 | Single |
1HP @ 120V 2HP @ 208/240V |
Features
- Panel and Controls UL Listed for United States and Canada.
- Pump Control and High Liquid Alarm differentiate between oil and water - Includes Oil Smart®-Pump Control, and Liquid Smart® Alarm Switch, and 20′ Cords
- Pump Control Visible Indicators: Pump Hand-Off-Auto (H.O.A.) Switch, Green Pump Run Light and Power On Light
- Alarm Visible Indicators: Red Beacon Alarm Light, Yellow Light for Oil, White Light for Water, Alarm Test and Silence Buttons
- Alarm Horn Sounds at 85 Decibels at 10 Feet
- Complete Panel Remote Monitoring Dry Contacts: Oil, Water, High Liquid
Specifications
- 10″x8″x4″ UL-50 Type 6P Listing
- Outdoor/Indoor NEMA 4X enclosure, heavy duty Polycarbonate construction
Applications
- Elevator
- Electric Utilities (Substations, Power Plants, Underground Vaults, and Transformer Barriers)
- Any Industrial Sump or Marine Application
*Please consult the factory for custom panel options
