oil smart logo

Pump Water, Not Oil.™

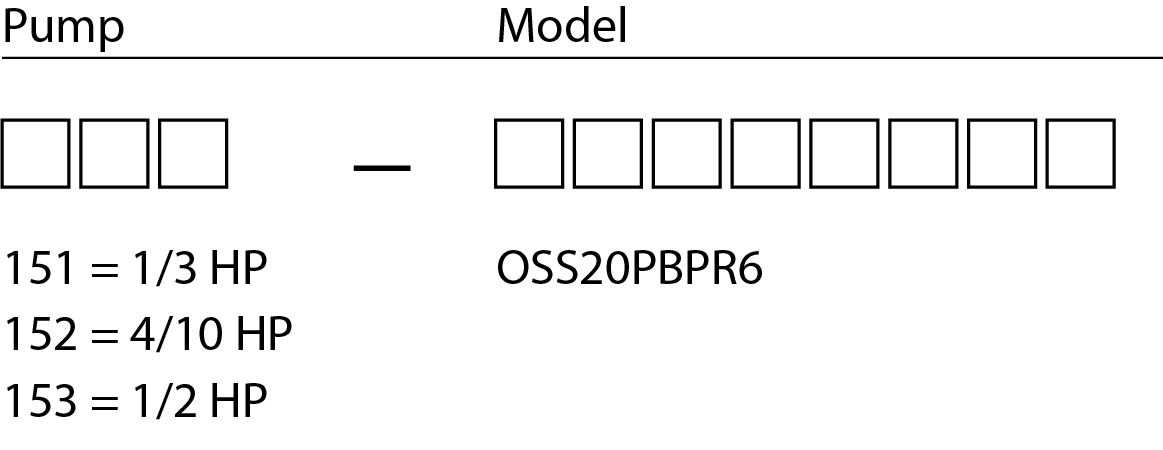

Model Volts Max. Load Assembly Pumping Range
OSS20R6 120 60Hz. 1HP Bare Leads 6″
OSS20PBPR6 120 60Hz. 1HP Piggyback Plug 6″
OSS20R6E 230 50/60Hz. 1HP Bare Leads 6″

Features

  • Directly controls sump pumps 0 to 1 hp (piggyback): quick installation
  • Available in 120 VAC, 230 VAC 50/60 Hz., or 12/24 VDC
  • No expensive electrical panel required
  • Sensors differentiate between oil and water
  • Differential between on and off comes in 2.5″ or 6″ models
  • Available with or without a piggyback plug
  • Helps satisfy elevator code ASME A17.1 and EPA, The Spill Prevention, Control, and Countermeasure Plan

Testing Made Easy!

A concept offered only by See Water Inc. Contractors have the luxury of testing the Oil Smart switch and alarm at any common receptacle prior to installation and during critical troubleshooting. Test with your fingers -no oil or water required!

Applications

  • Elevator Sumps
  • Electric Utilities ( Substations, Power Plants, Underground Vaults, and Transformer Barriers
  • Any Industrial Sump or Marine Application

Why Oil Smart?

    Capacitive Technology:

  • The Oil Smart® system uses capacitive sensors that are factory-calibrated for immediate operation to differentiate between oil and water. In contrast to conductive sensors, capacitive sensors are insulated by oil and do not require ongoing maintenance.
  • No Moving Parts:

  • Unlike other systems that utilize error prone floats as their primary oil and water sensors, Oil Smart® technology uses reliable solid-state sensors that do not require any moving parts. In addition, See Water’s Oil Smart® sensors have been third-party factory-tested for over 1 million cycles.
  • Adjustable Alarm:

  • The Liquid Smart® Alarm Sensor can be placed at any predetermined level. Every application is different and the adjustable alarm allows the sensor to be placed at the actual high liquid level which ensures that nuisance alarms do not occur.
  • Adaptable to Any Pump:

  • Not all jobs or applications are equal, which is why Oil Smart® technology allows for the flexibility of being paired with any submersible pump.
  • Easy Installation:

  • Our capacitive technology allows for hand testing of the sensors, whereas conductive technology requires more steps to test when the system is installed.
  • We offer the only true plug-and-play system in the industry. The Oil Smart® Plug-and-Play System (OSS-100) is the easiest elevator sump pump system to install on the market. With over 25 years of proven field results, Oil Smart® is the preferred solution by environmental specialists and engineers for preventing catastrophic oil spills.
