Oil Smart® Duplex Kit

Give us a call at 1.888.733.9283 to speak with one of our expert Sales Engineers or submit an online quote request by filling out the form below.

Request is being submitted... loading image

Your quote request has been submitted to our Sales Department. One of our Sales Engineers will contact you by phone or email within 24 hours or less.

An unexpected error has occurred.

Model Voltage Full Load Amps
OSD1P-1021 120/208/240 0-7.0
OSD1P-1022* 120/208/240 7.0-15.0
OSD1P-1023 120/208/240 15.0-22.0
OSD1P-1024 120/208/240 22.0-28.0

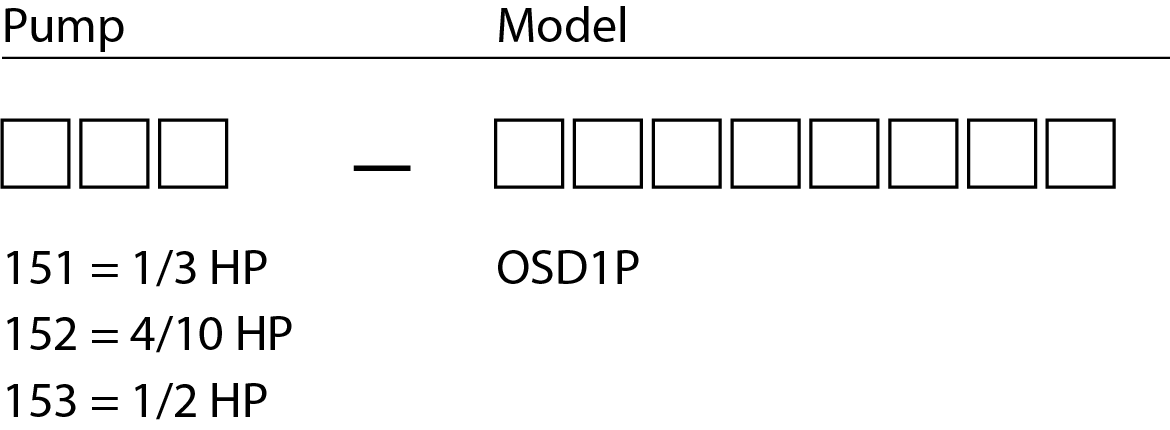

*If Model # OSD1P is ordered, the OSD1P-1022 will be shipped

Note: Thermal overload protection is generally provided in single phase pumps. To request a specific overload on the Oil Smart® Single Phase Models, contact the factory. Each panel includes a motor protector switch that will provide accurate pump circuit breaker protection.


  • Panel and controls: UL listed for the United States and Canada

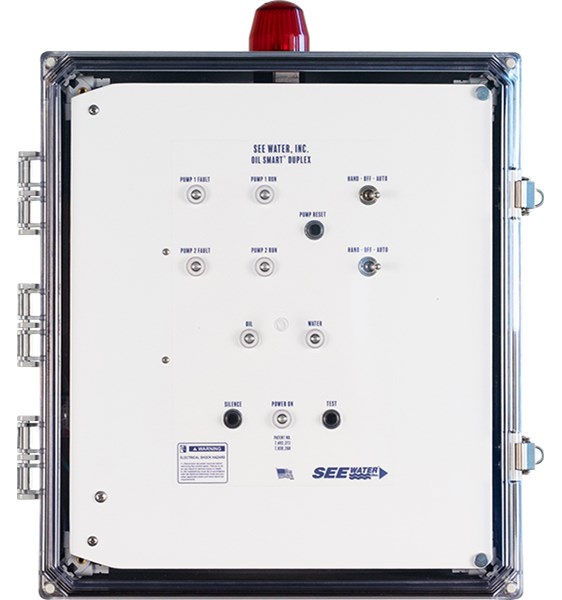

  • Indoor/Outdoor NEMA 4X panel enclosure: heavy duty polycarbonate with stainless steel lockable latches
  • Pump control visible indicators: pump hand-off-auto (H.O.A.) switches, green pump run lights, red pump fault lights, and green power on light
  • Alarm visible indicators: red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons
  • Alarm horn sounds at 85 decibels at 10 feet
  • Duplex provides: two pump alternation and high demand two pump operation
  • Remote monitoring dry contacts: oil, water, high liquid, pump run (s), pump #1 fault, and pump #2 fault

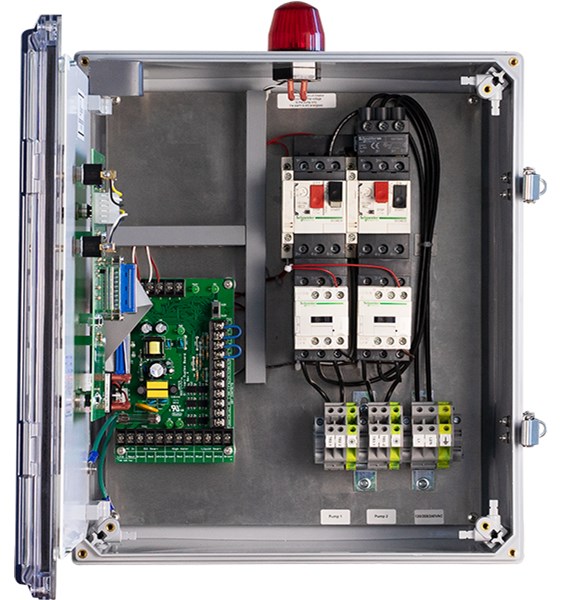

  • Upgraded pump protection: motor protective switches included for both pumps (branch circuit protection, adjustable overload and disconnect), and thermal cutout with indicators


  • Elevator sumps
  • Transformer containment areas
  • Underground utility vaults
  • Any application where there is a need to remove water while containing oil
