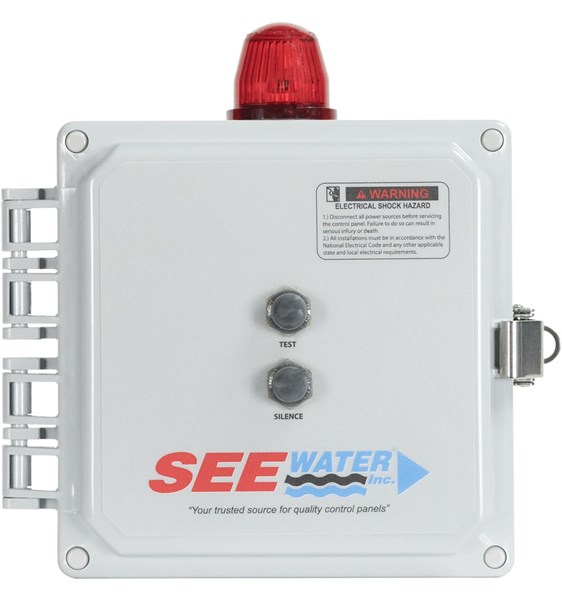

397 HLA-4X
Literature
HLA-4X-2
HLA-4X-3
HLA-4X-4
HLA-4X-5
HLA-4X-6
HLA-4X-7
HLA-4X-8
HLA-4X-9
HLA-4X-10
Typical Application: HLA-4X

The HLA-4X is a robust system housed in a NEMA 4X enclosure for areas that require constant protection against the elements. It provides constant monitoring of potentially threatening liquid level conditions at one or more alarm points. The HLA-4X is available in a variety of models ranging from 2-10 alarm point monitoring.

REQUEST A QUOTE

Models Description Enclosure
HLA-4X 1 Alarm Point Liquid Level Alarm 6" x 6" x 4"
HLA-4X-2 2 Alarm Point Liquid Level Alarm 10" x 8" x 4"
HLA-4X-3 3 Alarm Point Liquid Level Alarm 12" x 10" x 6"
HLA-4X-4 4 Alarm Point Liquid Level Alarm 12" x 10" x 6"
HLA-4X-5 5 Alarm Point Liquid Level Alarm 14" x 12" x 6"
HLA-4X-6 6 Alarm Point Liquid Level Alarm 14" x 12" x 6"
HLA-4X-7 7 Alarm Point Liquid Level Alarm 14" x 12" x 6"
HLA-4X-8 8 Alarm Point Liquid Level Alarm 14" x 12" x 6"
HLA-4X-9 9 Alarm Point Liquid Level Alarm 14" x 12" x 6"
HLA-4X-10 10 Alarm Point Liquid Level Alarm 14" x 12" x 6"

Add Pump Portal® remote pump monitoring to this system!     LEARN MORE


Features

  • 120/208/240VAC, single phase, 60Hz
  • Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
  • UL listed for the United States and Canada (panel and controls)
  • Alarm visible indicators: Red beacon alarm light, alarm test and silence buttons
  • Audible alarm provides audio warning of alarm condition (85 decibel)
  • Alarm automatically resets when liquid level is back to normal
  • 22mm indicator on front panel for each alarm point
  • Remote monitoring dry contacts (Form C)
  • Each panel comes standard with a narrow angle float switch with 20' cord for each alarm point

Custom Options

  • AF = Alarm Flasher
  • BB = 9V Battery Backup for Alarm Circuit
  • C = Additional cord lengths greater than 20’*
  • PX = Pump Portal® Wireless Remote System Monitoring
  • S3 = No Floats Included
  • S4 = Normally Closed Float (for Low Level Applications)
  • SS4 = Upgraded Enclosure (304 Stainless Steel)
  • SS6 = Upgraded Enclosure (316 Stainless Steel)

Note: For additional options or to mix and match high and low level alarm points on a single control panel, contact the factory at 888.733.9283 to discuss your requirements.

*Additional cord lengths greater than 20’: Specify after C. Example: (HLA-4X-C50) Indicates 50’ cord lengths for floats.

Applications

  • Industrial sumps
  • Holding tanks
  • Residential tanks
  • Lift stations
