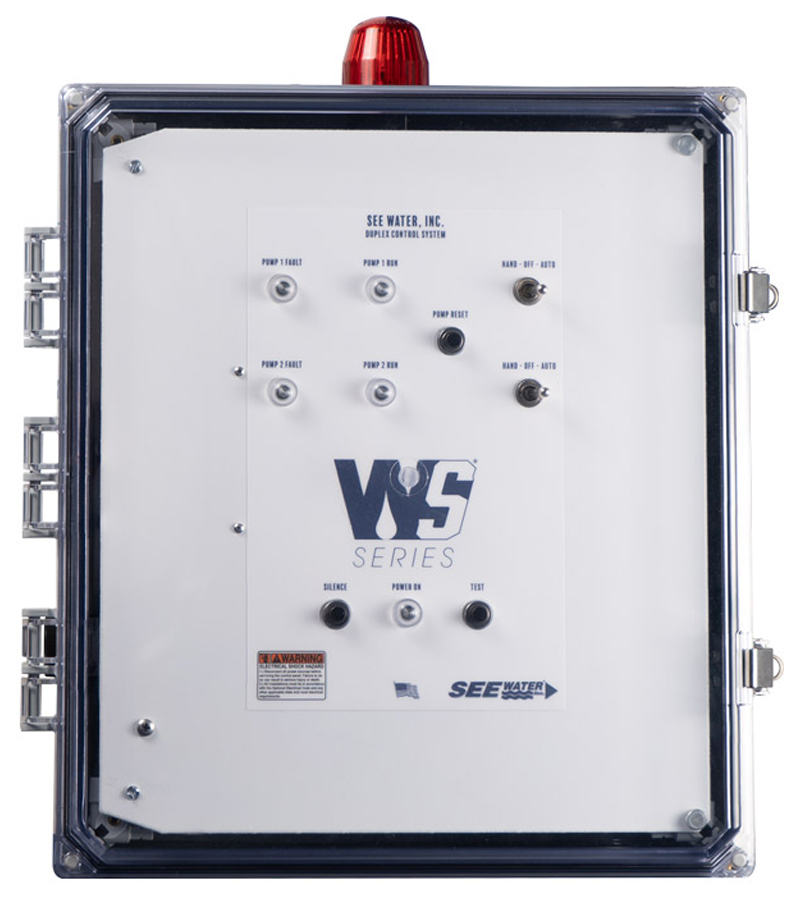

Single-Phase Duplex Float-Operated Pump Control Panel, 120/208/240 VAC
Features
NEMA 4X Rated Enclosure
Heavy duty indoor/outdoor polycarbonate with stainless steel lockable latches.
Duplex Operation
Two-pump alternation and high demand two-pump operation.
Visible Pump Control Indicators
Pump #1 and #2 hand-off-auto (H.O.A.) switch, green pump run lights, red pump fault lights with reset button, and power on light.
Visible Alarm Indicators
High red beacon alarm light, alarm test and silence buttons.
Audible Alarm Horn
Sounds at 85 decibels at 10'.
Remote Monitoring Dry Contacts
High liquid, pump fault(s), pump run(s).
Upgraded Pump Protection
Motor protective switches included for both pumps (branch circuit protection, adjustable overload and disconnect) and thermal cutout with indicators.
Applications
Sewage Pump Chambers
Grinder Pumps
Sump Pump Basins
Lift Stations
Custom Options
Pump Exerciser
Auto cycles pump(s) daily, weekly, or monthly.
Power On Dry Contact
Normally open.
Painted Steel Enclosure
Alarm FLasher
Anti-Condensation Heater
Additonal Cord Length
Greater than 20'
Cycle Counter
LCD display and reset.
Convenience Outlet
User to supply 120 VAC.
Elapsed Time Meter
LCD display and reset.
Generator Receptacle
Includes transfer switch.
Intrinsically Safe
Lightning Secondary Surge Arrestor
Low Level Alarm
Main Disconnect
Up to 100 FLA & 100 to 230 FLA.
Phase Monitoring
Pump Portal®
Wireless remote panel control and system monitoring***
Seal Fail Circuit
With indicator light.
No Floats Option
Upgraded Enclosure
304 stainless steel or 316 stainless steel.
Select the options below to find the part number you need:
For custom options, refer to the product catalog.
