Oil Smart® Plug-and-Play High Liquid Level Alarm, 120 VAC (OSA-05)

see water oil smart high liquid level osa 05

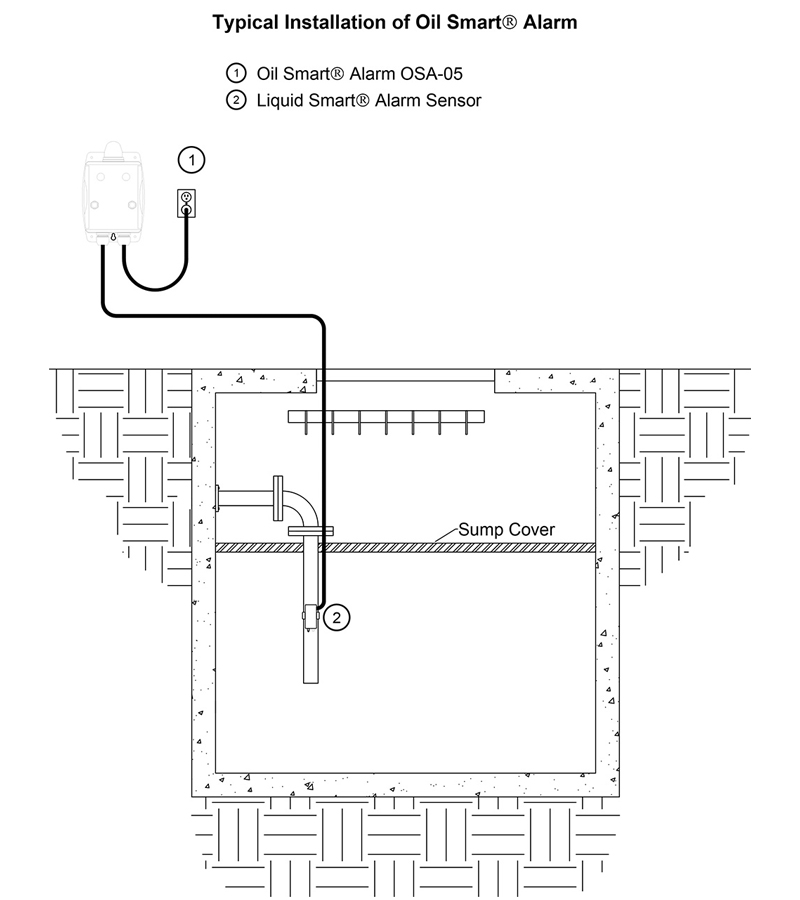

see water oil smart high liquid level osa 05 installation

Why Oil Smart®?

Why Oil Smart®?

Capcitive Technology

The Oil Smart® system uses capacitive sensors that are factory-calibrated for immediate operation to differentiate between oil and water. In contrast to conductive sensors, capacitive sensors are insulated by oil and do not require ongoing maintenance.

Adjustable Alarms

The Liquid Smart® Alarm Sensor can be placed at any predetermined level. Every application is different, and the adjustable alarm allows the sensor to be placed at the actual high liquid level, ensuring that nuisance alarms do not occur.

Adjustable to Any Pump

Not all jobs or applications are equal, which is why Oil Smart® technology allows for the flexibility of being paired with any submersible pump.

No Moving Parts

Unlike other systems that utilize error-prone floats as their primary oil and water sensors, Oil Smart® technology uses reliable solid-state sensors that do not require any moving parts. In addition, See Water’s Oil Smart® sensors have been third-party factory-tested for over 1 million cycles.

Easy Installation

Our capacitive technology allows for hand testing of the sensors, whereas conductive technology requires more steps to test when the system is installed. We offer the only true plug-and-play ® Plug-and-Play System (OSS-100) is the easiest elevator sump pump system to install on the market. With over 25 years of proven field results, Oil Smart® is the preferred solution by environmental specialists and engineers for preventing catastrophic oil spills.

Edit Template
Oil Smart® Logo.

Pump Water, Not Oil.™

Plug-and-Play High Liquid Level Alarm, 120 VAC

Capacitive Technology
Adjustable Alarms
Adjusts to any Pump
No Moving Parts
Easy Installation
The Oil Smart® alarm system is a plug-and-play alarm that differentiates between oil and water. The system is complete with visible mounted indicators and dry contacts for remote monitoring. The alarm will activate with the presence of any liquid and will identify if oil or water is present. With the unique ability to differentiate between oil and water, the Oil Smart® alarm system is designed as a high liquid alarm or leak detector system. This alarm system is also compliant with Elevator Code ASME A17.1 and state/federal regulations.

Features

Easy Installation

Differentiate Between Oil & Water

Includes Liquid Smart®

Alarm sensor with 20' cord.

Visible Alarm Indicators

Red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons.

Audible Alarm Horn

Sounds at 85 decibels at 10'.

10' Heavy Duty Power Cord

Remote Monitoring Dry Contacts

Oil, water, and high liquid alarm.

Edit Template

Applications

Elevator Sumps

Electric Utilities

Substations, power plants, underground vaults, and transformer barriers.

Industrial Sump or Marine Application

Oil Storage Tank

Tank Gauging

Inner liner monitoring or between walls of a storage tank.

Remove Water, Contain Oil

Any application where there is a need to remove water while containing oil.

Edit Template

Custom Options

Additional Cord Length

Greater than 20'.

Floor Bracket

For Liquid Smart® Alarm Sensor.

Edit Template

Part Number

OSA-05

Catalog

Installation

How Does Oil Smart Work?

Oil Smart® Pump Switch & Pump Operation

oil smart® pump switch and pump operation illustration

Oil Smart® Alarm Sensor

oil smart® alarm sensor illustration
