Add remote monitoring
SIM Three-Phase Simplex Pump Control Panel, 208/240/480 VAC
Simplex
NEMA 4X Rated
IEC Rated Contactor
Two Floats
UL Listed

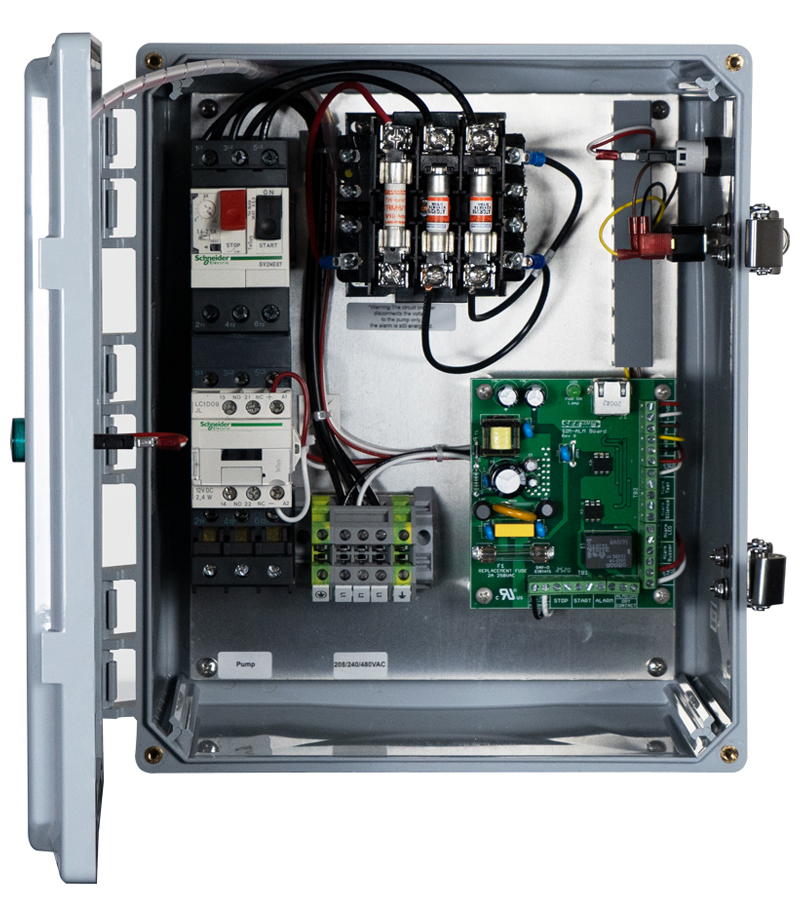

The SIM control panel will control a 208/240/480V three-phase pump in dewatering, sewage, and wastewater pumping applications. These simplex control panels include integrated electronic control circuitry, an IEC motor contactor, and two floats: Pump On and Pump Off. The controls are housed in a NEMA 4X rated heavy-duty polycarbonate enclosure convenient for field wiring. This panel is UL listed for the United States and Canada and comes standard with a five-year limited warranty.
Features
NEMA 4X Rated Enclosure
Heavy duty indoor/outdoor enclosure.
H.O.A. Toggle Switch
Hand-off-auto (H.O.A.) toggle switch for manual pump control and green LED pump run light.
Control Board
With power on and auto (H.O.A. toggle position) LED indicators.
Quick Installation & Low Maintenance
UL Listed
For United States and Canada.
Applications
Sewage Pump Chambers
Grinder Pumps
Sump Pump Basins
Lift Stations
Custom Options
Pump Exerciser
Auto cycles pump(s) daily, weekly, or monthly.
Painted Steel Enclosure
Additonal Cord Length
Greater than 20'
Pump Portal®
Wireless remote panel control and system monitoring***
Substituted Float
Substitute two narrow angle floats for one wide angle float with 20' cord.
No Floats Included
Upgraded Enclosure
304 stainless steel or 316 stainless steel.
Select the options below to find the part number you need:
For custom options, refer to the product catalog.
