Lighthouse™ Continuous Liquid Level Alarm & Monitoring System

User-Friendly Interface
Continuous Level Reading
Visible Indicators
Adjustable Alarms
Easy Setup
The Lighthouse™ Liquid Level Alarm comes with a user-friendly interface for level monitoring applications. It can be used with up to two level transmitters as well as low and high level floats to provide continuous tank liquid level and alarm readings. This device offers you complete flexibility to adjust the system to your desired alarm set points and is easy to set up in minutes!

Features

120 VAC, Single Phase Input

Backup Battery

12 VDC input for backup battery (battery is charging while AC power is connected).

NEMA 4X Rated

Indoor/outdoor NEMA 4X rated enclosure (6" x 6" x 3"): Heavy duty polycarbonate.

Red Beacon Alarm Light

Audible Alarm

Sounds at 85 decibels at 10'.

Dual Level Transmitter Compatibility

Compatible with two 4-20mA 24V level transmitters.

Digital Display

Included panel-mounted digital display with four-button membrane.

Adjustable Set Points

For high level and low level alarms.

User-Configurable Password Access

Remote Monitoring Dry Contact

Power On LED Indicator

Indicates cellular signal strength with Pump Portal® option.

Edit Template

Applications

Industrial Sumps

Holding Tanks

Residential Tanks

Lift Stations

Edit Template

Custom Options

Level Transducer

Available in 5 PSI, 10 PSI, 15 PSI, or 20 PSI.

Backup Battery

12V battery backup for alarm circuit.

Backup Float

Include (1) high level backup float & (1) low level backup float, 50' cables.

Pump Portal®

Wireless remote panel control and system monitoring***

Edit Template

Part Number

LH7001

For custom options, refer to the product catalog.

Catalog

Installation

Engineering Specifications

Schematics

Lighthouse™ Digital Display

lighthouse screen settings menu fe29a

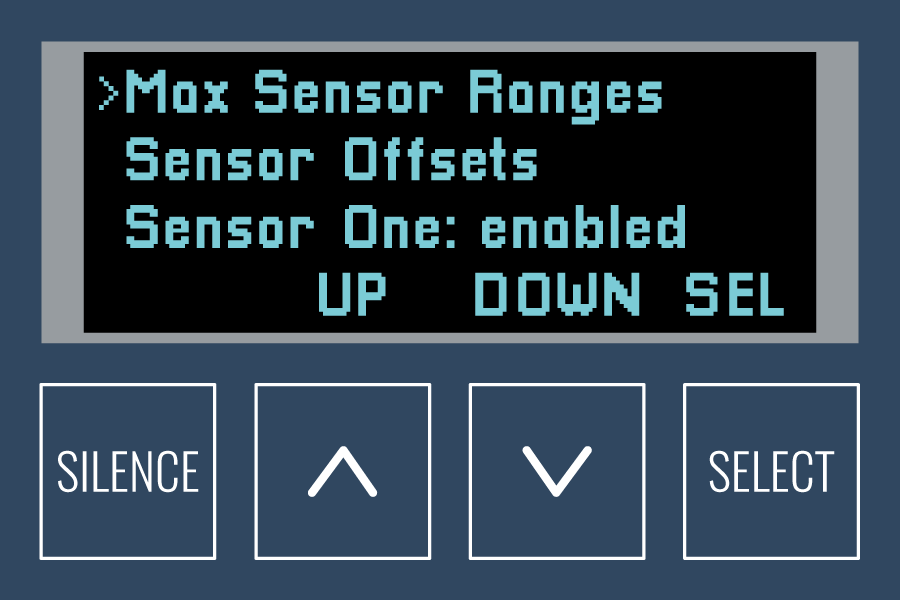

Settings Menu

Use the Settings Menu to adjust the Max. Sensor Ranges, Sensor Offsets, High/Low Level Alarms, and Passcode Settings. This area is protected if a passcode is enabled.
lighthouse screen operation mode 702a5

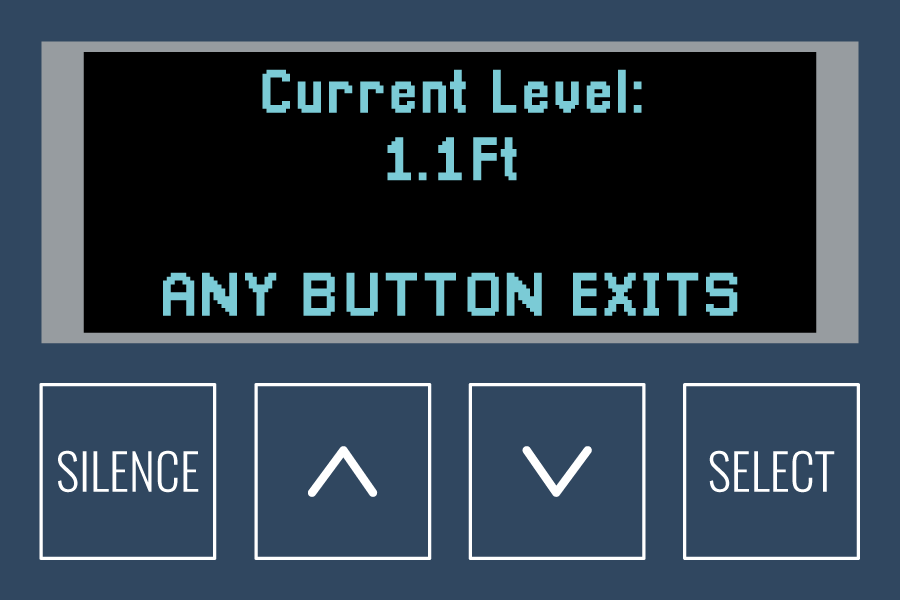

Operation Mode

Alarms are only triggered in Operation mode. High/Low Level Alarms are triggered by the float switch or analog level sensors.
