Oil Smart® Systems
Oil Smart® Plug-and-Play Elevator Sump Pump Control & Alarm System, 120 VAC
OSS-100
The Oil Smart® OSS-100 System, when combined with a manual sump pump, will automatically pump water without the risk of pumping oil into the environment.
Oil Smart® Single-Phase Simplex Pump Control Panel, 120/208/240 VAC
OSSIM-30-XX
The Oil Smart® simplex panel, when combined with a manual sump pump, will automatically pump water without the risk of pumping oil into the environment.
Liquid Smart® Oil/Water Pump Control Panel, 120/208/240 VAC
OSSIM-30-OR-X
Liquid Smart® pump panels are designed to meet industrial and elevator code special applications that require the responsible removal of oil and water.

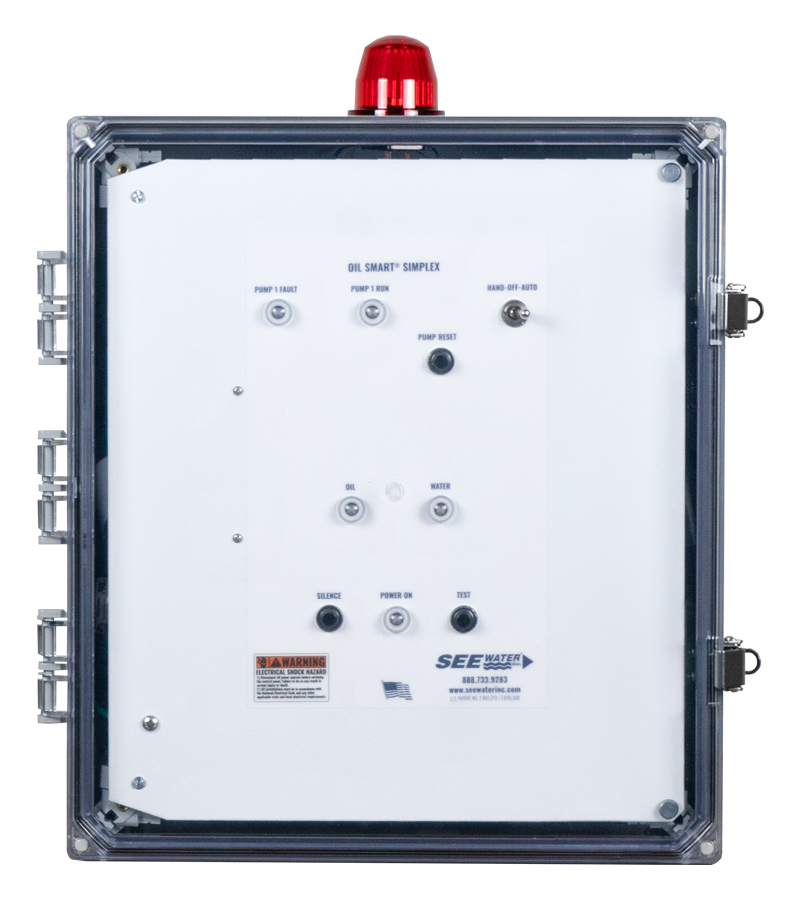

Oil Smart® Single-Phase Simplex Total Pump Protection Panel, 120/208/240 VAC
OSSIM-TP-100X
The Oil Smart® single phase simplex control panel will control a 120/208/240V single phase pump in elevator sumps, transformer containment areas, and any application where there is a need to remove water while containing oil.

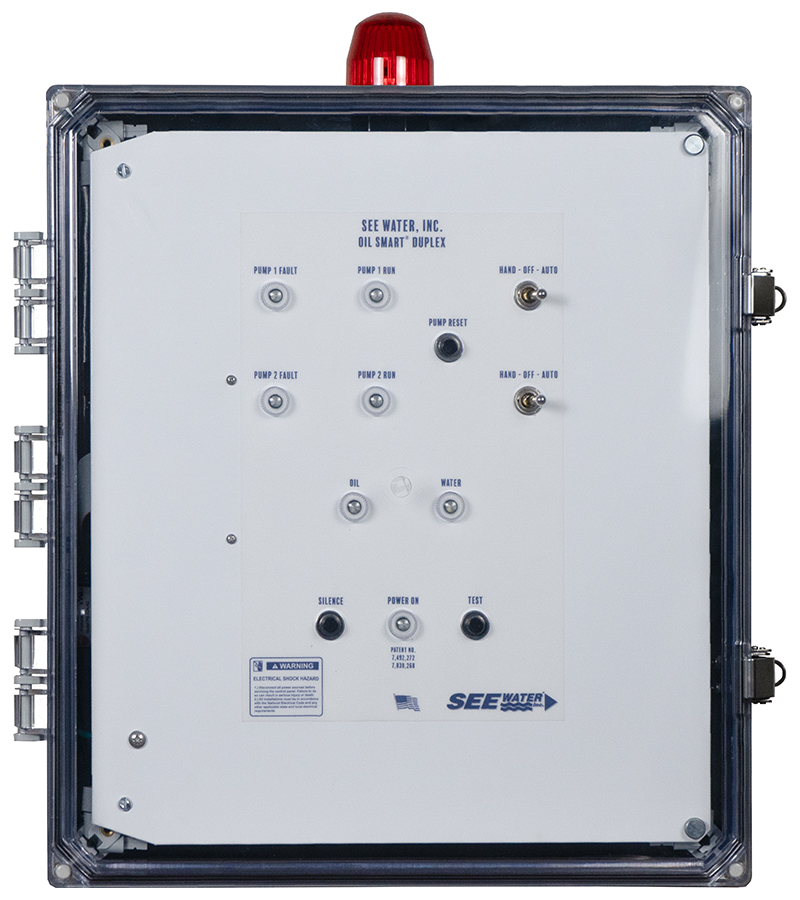

Oil Smart® Single-Phase Duplex Pump Control Panel, 120/208/240 VAC
OSD1P-102X
The Oil Smart® single-phase duplex control panel will control two 120/208/240V single-phase pumps in elevator sumps, transformer containment areas, and any application where there is a need to remove water while containing oil.
Oil Smart® Three-Phase Simplex Pump Control Panel, 208/240/480 VAC
OSSIM-TP-30XX
The Oil Smart® three phase simplex control panel will control a 208/240/480V three phase pump in elevator sumps, transformer containment areas, and any application where there is a need to remove water while containing oil.
Oil Smart® Three-Phase Duplex Pump Control Panel, 208/240/480 VAC
OSD3P-30XX
The Oil Smart® three phase duplex control panel will control two 208/240/480V three phase pumps in elevator sumps, transformer containment areas, and any application where there is a need to remove water while containing oil.

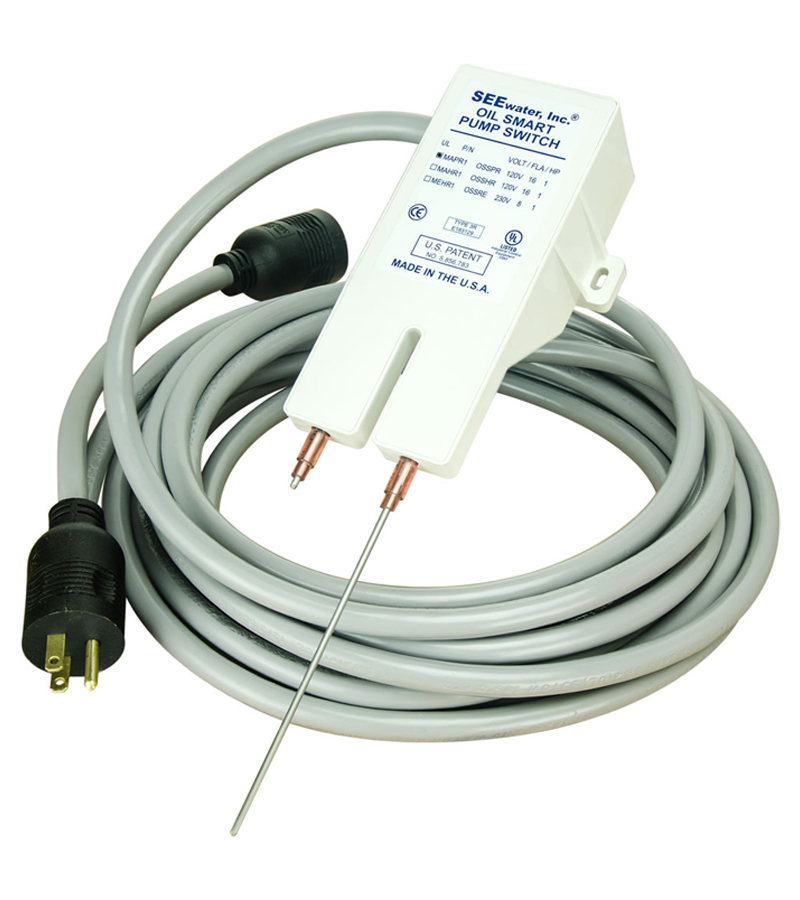

Oil Smart® Oil-Smart Pump Switch
OSS20XX
The Oil Smart® Pump Switch, when combined with a non-auto sump pump, will allow water to be pumped without the risk of pumping oil.

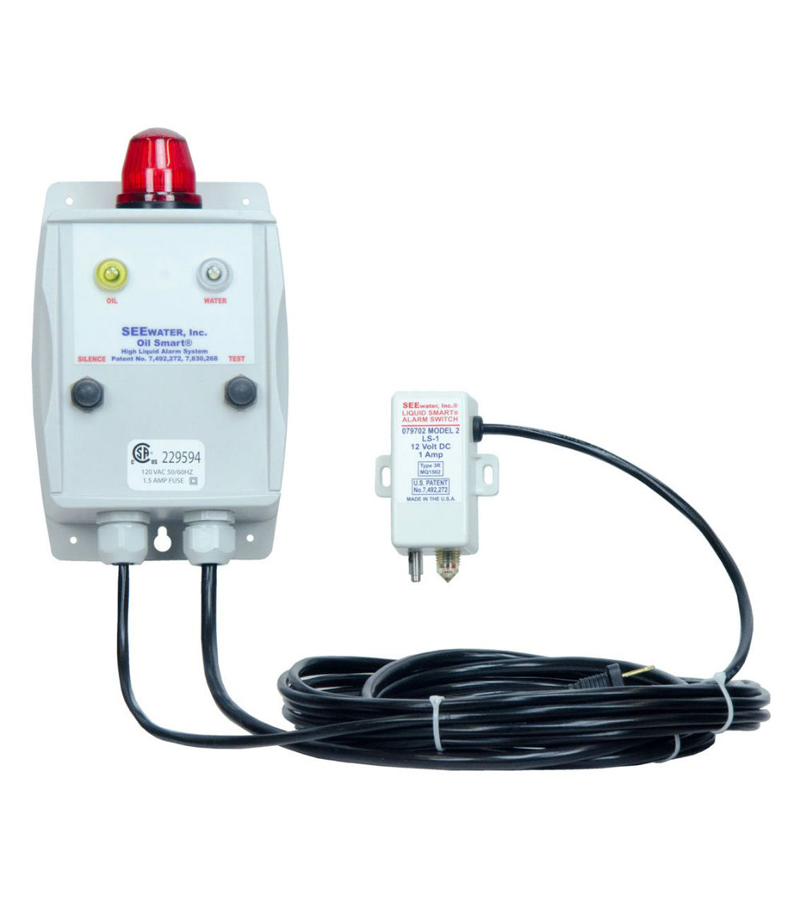

Oil Smart® Plug-and-Play High Liquid Level Alarm, 120 VAC
OSA-05
The Oil Smart® alarm system is a plug-and-play alarm that differentiates between oil and water.
Oil Smart® NEMA 4X High Liquid Level Alarm, 120 VAC
OSA-06
The OSA-06 is an Oil Smart® alarm designed for outdoor applications.

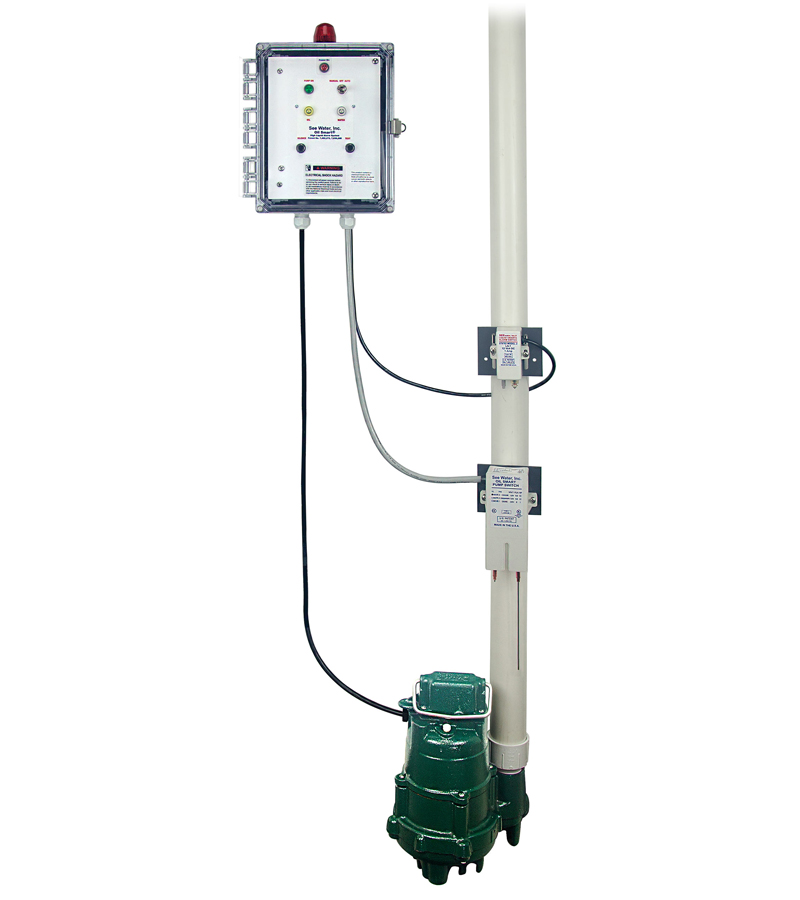

Oil Smart® Electric Utility Pump Kits for Transformer Containment
The Oil Smart® kits include the Oil Smart® system and pump required to safely discharge water from transformer oil containment areas and underground vaults into waterways and the environment without the risk of pumping oil.
How Does Oil Smart® Work?

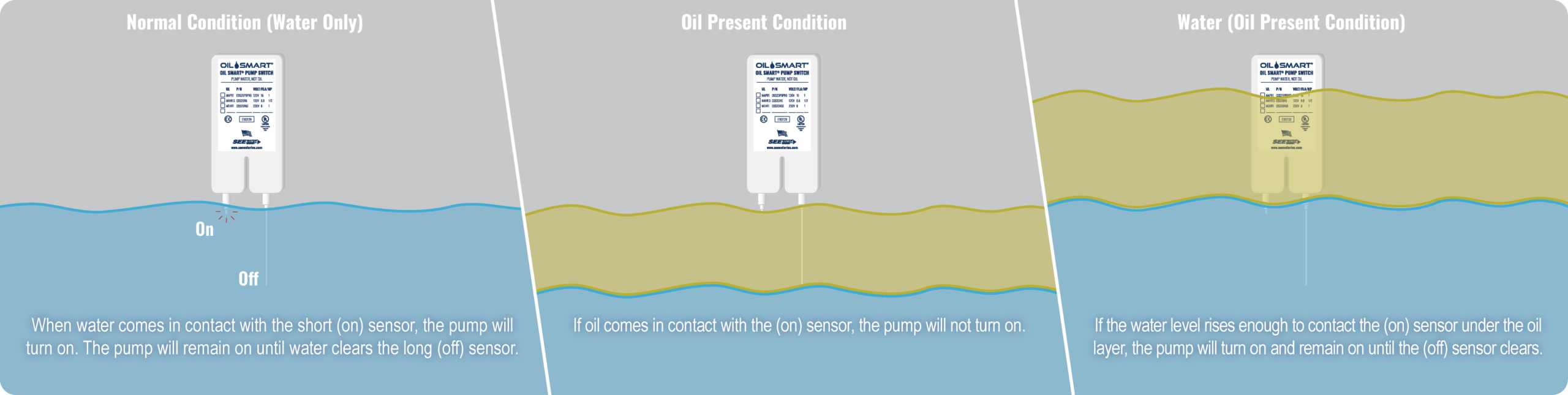

Oil Smart® Pump Switch & Pump Operation

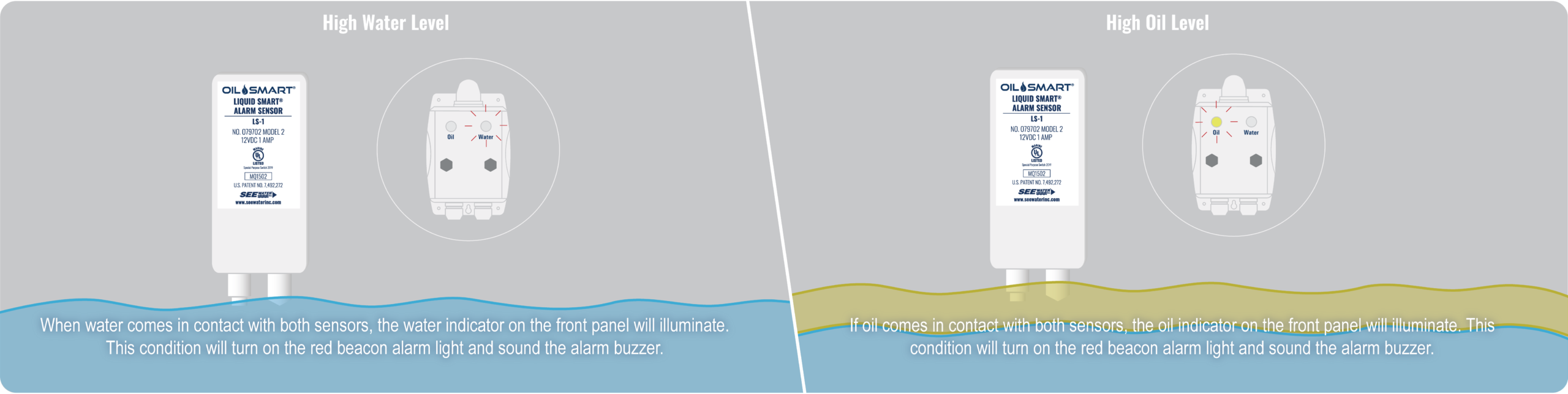

Oil Smart® Alarm Sensor
