Oil Smart® Plug-and-Play Elevator Sump Pump Control & Alarm System, 120 VAC (OSS-100)

Oil Smart® Plug-and-Play System

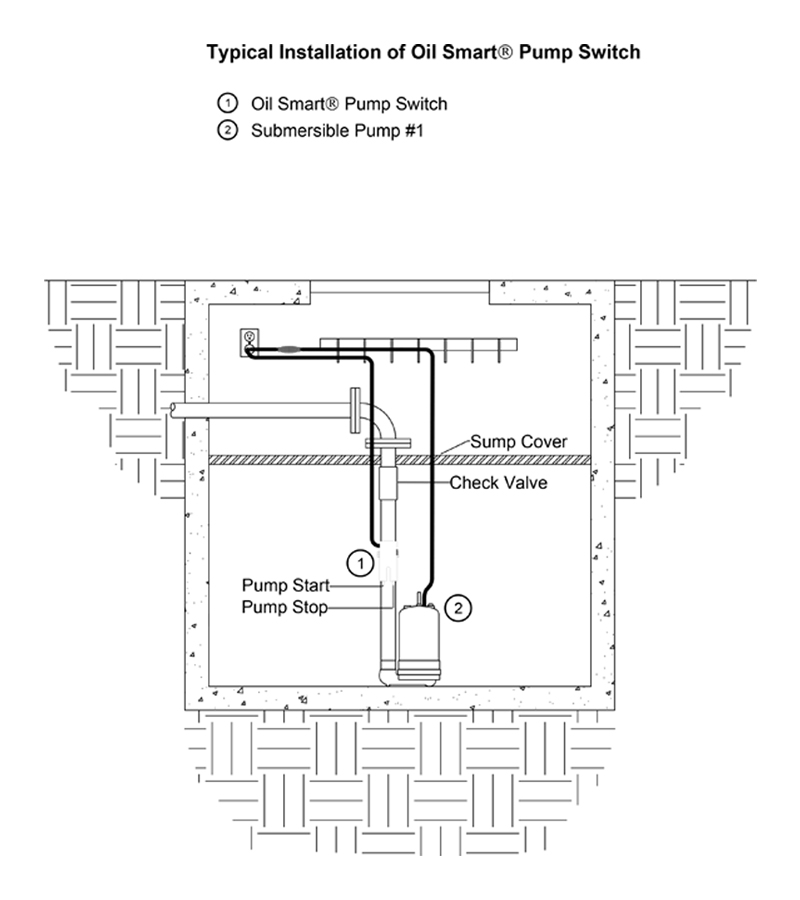

Oil Smart® Plug-and-Play System, typical installation.

Why Oil Smart®?

Why Oil Smart®?

Capcitive Technology

The Oil Smart® system uses capacitive sensors that are factory-calibrated for immediate operation to differentiate between oil and water. In contrast to conductive sensors, capacitive sensors are insulated by oil and do not require ongoing maintenance.

Adjustable Alarms

The Liquid Smart® Alarm Sensor can be placed at any predetermined level. Every application is different, and the adjustable alarm allows the sensor to be placed at the actual high liquid level, ensuring that nuisance alarms do not occur.

Adjustable to Any Pump

Not all jobs or applications are equal, which is why Oil Smart® technology allows for the flexibility of being paired with any submersible pump.

No Moving Parts

Unlike other systems that utilize error-prone floats as their primary oil and water sensors, Oil Smart® technology uses reliable solid-state sensors that do not require any moving parts. In addition, See Water’s Oil Smart® sensors have been third-party factory-tested for over 1 million cycles.

Easy Installation

Our capacitive technology allows for hand testing of the sensors, whereas conductive technology requires more steps to test when the system is installed. We offer the only true plug-and-play ® Plug-and-Play System (OSS-100) is the easiest elevator sump pump system to install on the market. With over 25 years of proven field results, Oil Smart® is the preferred solution by environmental specialists and engineers for preventing catastrophic oil spills.

Edit Template
Oil Smart® Logo.

Plug-and-Play Elevator Sump Pump Control & Alarm System, 120 VAC

Pump Water, Not Oil.™

Capacitive Technology
Adjustable Alarms
Adjusts to any Pump
No Moving Parts
Easy Installation
The Oil Smart® OSS-100 System, when combined with a manual sump pump, will automatically pump water without the risk of pumping oil into the environment. Additionally, the system alerts maintenance or building personnel in the event of a high oil or high water condition. Installation of the OSS-100 allows you to comply with Elevator Code ASME A17.1 and state/federal regulations while reducing the risk of adverse publicity, fines and expensive cleanup costs. The system is a plug-and-play system that includes the Oil Smart® pump switch (OSS20PBPR6) and the Oil Smart® alarm (OSA-05). The OSS-100 operates on 120 VAC single-phase power and is designed to control pumps up to 1 HP at 120V.

Features

Easy Installation

Differentiate Between Oil & Water

Visible Alarm Indicators

Red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons.

Audible Alarm Horn

Sounds at 85 decibels at 10'.

Remote Monitoring Dry Contacts

Oil, water, and high liquid alarm.

Edit Template

Applications

Elevator Sumps

Electric Utilities

Substations, power plants, underground vaults, and transformer barriers.

Manufacturing Facilities

Remove Water, Contain Oil

Any application where there is a need to remove water while containing oil.

Edit Template

Part Number

OSS-100

Catalog

Engineering Specifications

Installation & Operation

How Does Oil Smart Work?

Oil Smart® Pump Switch & Pump Operation

oil smart® pump switch and pump operation illustration

Oil Smart® Alarm Sensor

oil smart® alarm sensor illustration
