Why Oil Smart®?
Why Oil Smart®?
Capcitive Technology
The Oil Smart® system uses capacitive sensors that are factory-calibrated for immediate operation to differentiate between oil and water. In contrast to conductive sensors, capacitive sensors are insulated by oil and do not require ongoing maintenance.
Adjustable Alarms
The Liquid Smart® Alarm Sensor can be placed at any predetermined level. Every application is different, and the adjustable alarm allows the sensor to be placed at the actual high liquid level, ensuring that nuisance alarms do not occur.
Adjustable to Any Pump
Not all jobs or applications are equal, which is why Oil Smart® technology allows for the flexibility of being paired with any submersible pump.
No Moving Parts
Unlike other systems that utilize error-prone floats as their primary oil and water sensors, Oil Smart® technology uses reliable solid-state sensors that do not require any moving parts. In addition, See Water’s Oil Smart® sensors have been third-party factory-tested for over 1 million cycles.
Easy Installation
Our capacitive technology allows for hand testing of the sensors, whereas conductive technology requires more steps to test when the system is installed. We offer the only true plug-and-play ® Plug-and-Play System (OSS-100) is the easiest elevator sump pump system to install on the market. With over 25 years of proven field results, Oil Smart® is the preferred solution by environmental specialists and engineers for preventing catastrophic oil spills.
Add remote monitoring

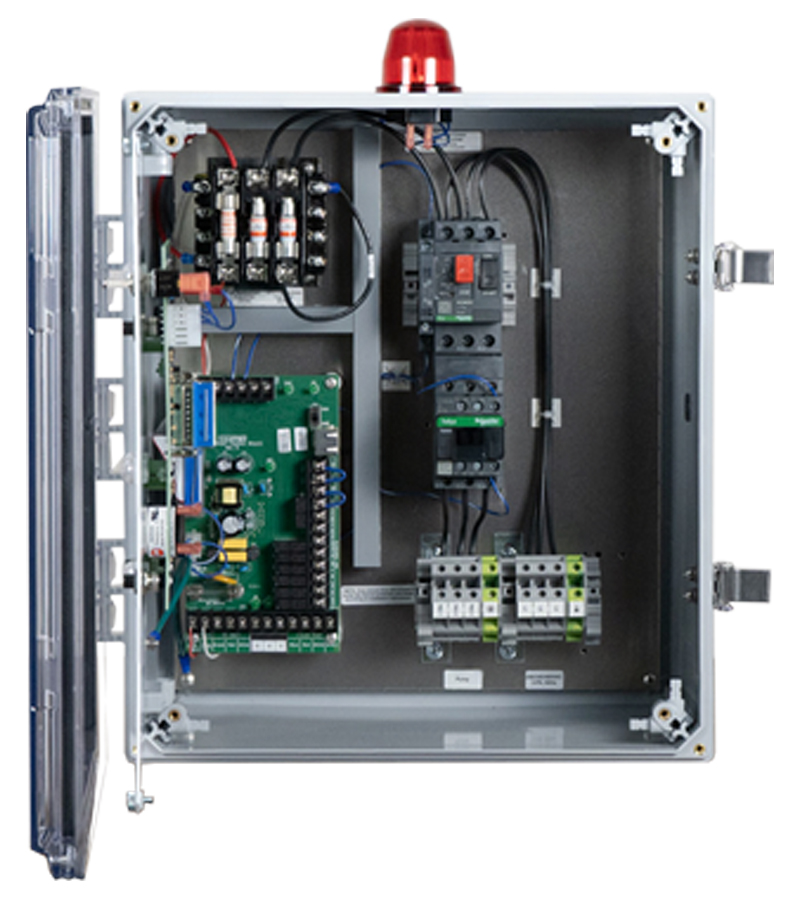

Three-Phase Simplex Pump Control Panel, 208/240/480 VAC
Pump Water, Not Oil.™
Features
NEMA 4X Rated Enclosure
Polycarbonate enclosure with a clear front and a deadfront inner door and stainless steel lockable latches.
Visible Pump Control Indicators
Pump #1 hand-off-auto (H.O.A.) switch, green pump run light and green power on light.
Visible Alarm Indicators
Red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons.
Audible Alarm Horn
Sounds at 85 decibels at 10'.
Remote Monitoring Dry Contacts
Oil, water, and high liquid alarm.
Upgraded Pump Protection
Motor protective switch (branch circuit protection, adjustable overload and disconnect) and a thermal cutout with indicator.
Applications
Elevator Sumps
Electric Utilities
Substations, power plants, underground vaults, and transformer barriers.
Manufacturing Facilities
Remove Water, Contain Oil
Any application where there is a need to remove water while containing oil.
Custom Options
Pump Exerciser
Auto cycles pump(s) daily, weekly, or monthly.
Power On Dry Contact
Painted Steel Enclosure
Upgraded Enclosure
NEMA 6P Rated (removes buzzer and beacon), 304 stainless steel, or 316 stainless steel.
Alarm FLasher
Anti-Condensation Heater
Additonal Cord Length
Greater than 20'
Cycle Counter
LCD display and reset.
Elapsed Time Meter
LCD display and reset.
Lightning Secondary Surge Arrestor
Main Disconnect
Phase Monitoring
Ph loss, Ph unbalance, undervoltage, overvoltage
Pump Portal®
Wireless remote panel control and system monitoring***
Seal Fail Circuit
With indicator light.
Intrinsically Safe
Select the options below to find the part number you need:
For custom options, refer to the product catalog.
How Does Oil Smart Work?
Oil Smart® Pump Switch & Pump Operation
Oil Smart® Alarm Sensor
