Parabola® VFD Control Panel – Constant Pressure Applications

Parabola® VFD Control Panels - Constant Pressure Applications

The Parabola® VFD control panels are advanced pre-engineered simplex, duplex and triplex control panels with a user-friendly HMI control interface. The control panels are designed for constant pressure applications, including: irrigation systems, chemical feed systems, cooling towers, commercial pressure boosting, building water supply systems and other constant pressure applications.

REQUEST A QUOTE

Features

  • Single or three phase voltage supply, controls 208/240/480VAC pump(s)
  • Pump protection: Motor protective switch included for each pump (branch circuit protection, adjustable overload and disconnect)
  • Alarm horn sounds at 85 decibels at 10 feet
  • Alarm visible features: Red beacon alarm light
  • Remote monitoring dry contacts: High/low pressure alarms, summary alarm/fault (normally open)
  • NEMA 3R rated enclosure: Painted steel with lockable front door and through door main disconnect
  • Stainless steel pressure transducer 0-300 PSI, 1/4” NP, 4-20mA output included
  • Variable frequency drive operation with configurable parameter settings accessible via HMI
  • Panel and controls are UL listed for the United States and Canada
  • Modbus RTU/TCP communication options

Add Pump Portal® remote pump monitoring to this control panel!     LEARN MORE


Program/PLC/HMI

  • Constant pressure operation with optional adjustable PID settings and high/low pressure alarms
  • Selectable alternation pattern: Cycle or timed
  • Multiple access levels for added security
  • Duplex panel provides pump rotation and high demand two-pump operation
  • Pump run data logging: Records each pump event - start time, stop time and run duration
  • Automatic system restart
  • HMI touchscreen display features:
    • Hand-Off-Auto (H.O.A.) switch for each pump
    • Green Pump Run indicators
    • Red Pump Fault indicators
    • Pump and pressure status screens
  • Alarm/Fault history: Data logging gives access to 250 fault conditions with date and time (optional access to auto-save alarm history to USB drive)
  • Backup pressure override operation: User-configurable feature that automatically switches to pressure switch operation in the event of a transducer error
  • No flow protection: User-configurable feature that inhibits pumping during no flow conditions

Applications

  • Irrigation systems
  • Chemical feed systems
  • Cooling towers
  • Commercial pressure boosting systems
  • Building water supply systems
  • Other constant pressure applications

Custom Options

  • 300 = Pressure Transducer Stainless Steel 0-300 PSI,1/4” NPT, 4-20mA output
  • AH = Anti Condensation Heater
  • CO = Convenience Outlet (User to Supply 120VAC)
  • GR = Generator Receptacle, Includes Transfer Switch
  • IS = Intrinsically Safe - Simplex
  • ISD = Intrinsically Safe - Duplex
  • IST = Intrinsically Safe - Triplex
  • LAD/LAW = Lightning Secondary Surge Arrestor (LAD Delta / LAW Wye)
  • PM = Phase Monitoring
  • PX = Pump Portal® Wireless Remote Panel Control and System Monitoring
  • SF = Seal Failure Circuit and Indicator Light - Simplex
  • SFD = Seal Failure Circuit and Indicator Lights - Duplex
  • SFT = Seal Failure Circuit and Indicator Lights - Triplex
  • TC = Pump Thermal Cutout Circuit and Indicator - Simplex
  • TCD = Pump Thermal Cutout Circuit and Indicator - Duplex
  • TCT = Pump Thermal Cutout Circuit and Indicator - Triplex

Overview

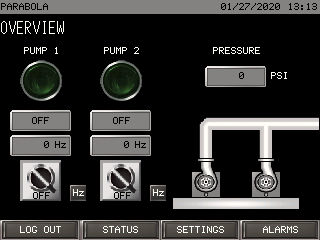

The HMI’s main menu displays live pump data and H.O.A. switch(es). This menu is the user’s command center.

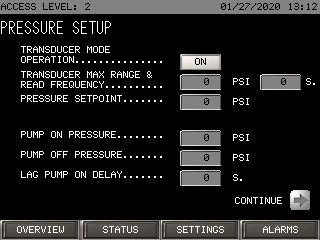

Pressure Setup

For constant and pressure boosting-based applications. Users can easily adjust the PSI set points to optimize efficiency. Optional PID access available.

Pump Status

Status of all processes. Users can view Pump Fault, Run Time and other necessary information associated with the pump operation.

Alarm/Fault History

Data logging gives you access to up to 250 conditions with date and time.

Advanced Communication

Modbus RTU, Modbus TCP and additional communication protocols are supported.
